The hinged fire doors in Sisti Engineering’s Quality Range offer a reliable and comprehensive solution for the most common market requirements. These products are characterised by quality standards defined according to their respective fire resistance class, and are designed to meet precisely the key requirements of the residential, commercial and industrial sectors.
Certified performance, modular solutions
Unlike the bespoke solutions in the Design Range, the hinged fire doors in the Quality Range feature standardised dimensions, which allow for optimised lead times and excellent value for money. Although based on defined sizes, it is still possible to produce made-to-measure versions within the dimensional limits specified for each type, ensuring a high degree of flexibility in application.
The range comprises a variety of solutions, designed for the main areas of application:

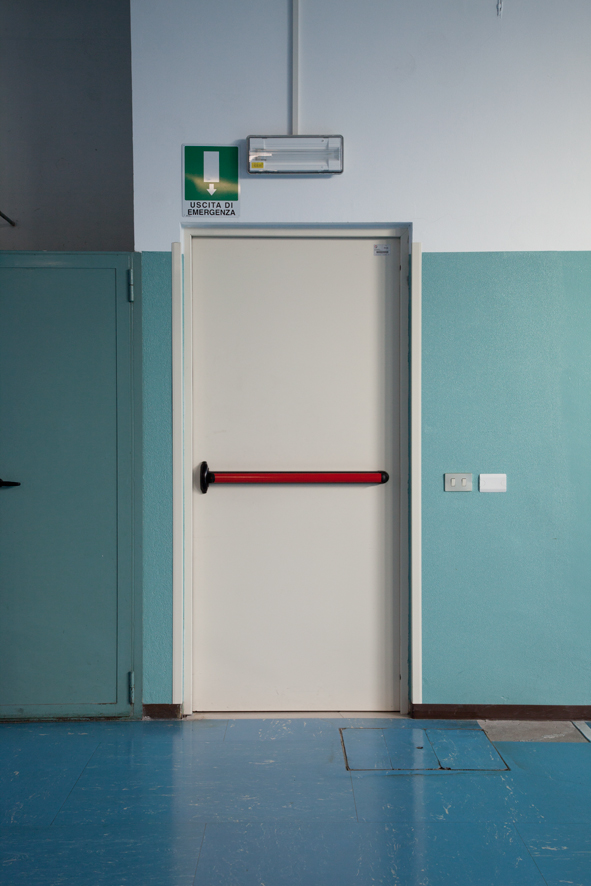

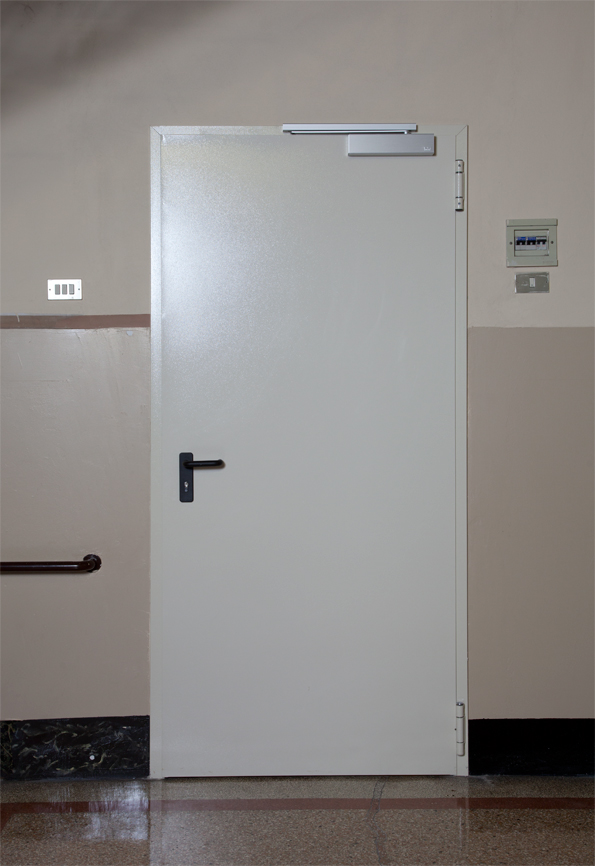

One of the distinctive features of the Quality Range within the field of hinged fire doors is its wide range of certified accessories, developed by Sisti Engineering through an ongoing process of research and development. Panic bars, automatic closing devices, sequence selectors, holding solenoids and smoke control systems are designed, selected and tested to ensure performance that exceeds the minimum regulatory requirements, helping to set high standards of quality.
A further operational advantage of the Quality Range is the option to receive single-leaf fire doors fully assembled and ready for installation. This solution reduces on-site working time, minimises the risk of errors during assembly and ensures that every component has been thoroughly checked prior to delivery, in full compliance with the installation instructions and current fire safety regulations.
All hinged fire doors in the Quality Range undergo a rigorous verification process through Sisti Engineering’s internal quality and safety tests, as well as passing the type-approval tests required by regulations. This approach ensures high levels of compliance and long-term reliability, underpinned by the company’s ISO 9001:2015 certification for its production system, which has been in place since 2004 (certificate no. SQ041804).
Series BS STD REI 60 - REI 120
Internal Fireproof Door for pedestrian use – Class REI 60 – REI 120
Approved in accordance with the Ministerial Decree of 21/06/2004
- Shaped frame in 1.8 mm-thick galvanized steel, with seats for gaskets for cold smoke sealing and thermo-expanding gasket for high temperature sealing.
- Door in 1 mm-thick galvanized steel sheet. High-density internal insulation.
The total thickness of the door is 65 mm.

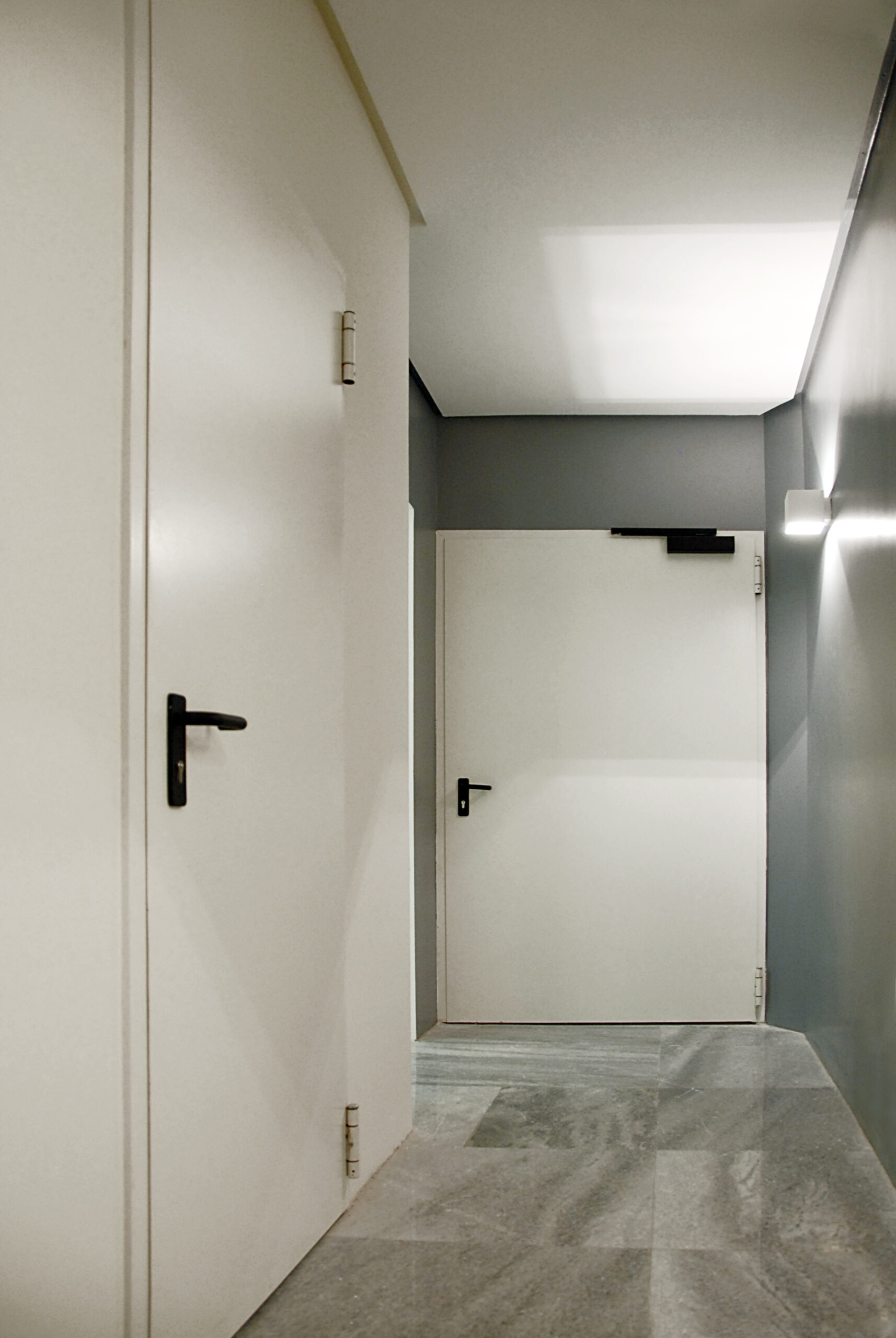

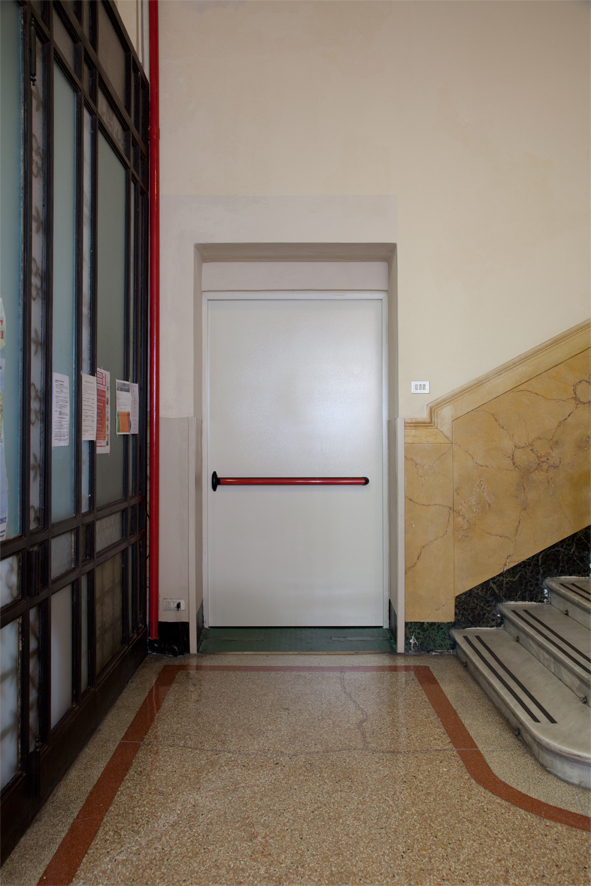

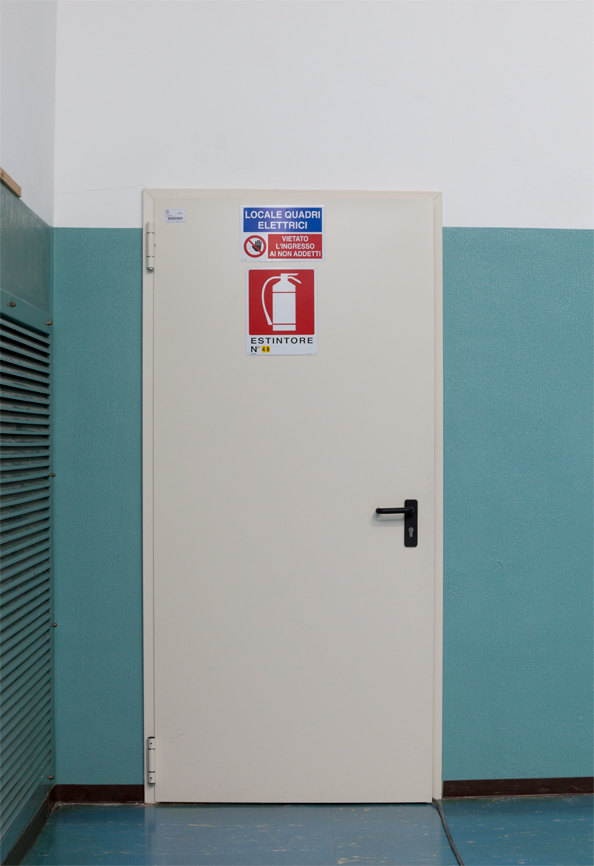

BS STD 1B REI 60 - REI 120 Hinged Single Door
Height-adjustable three-wing hinges with steel ball, self-closing with helical spring incorporated into the hinge.
Single-point fire lock, with nickel-plated through cylinder and pair of heat-resistant handles specifically for fire doors.

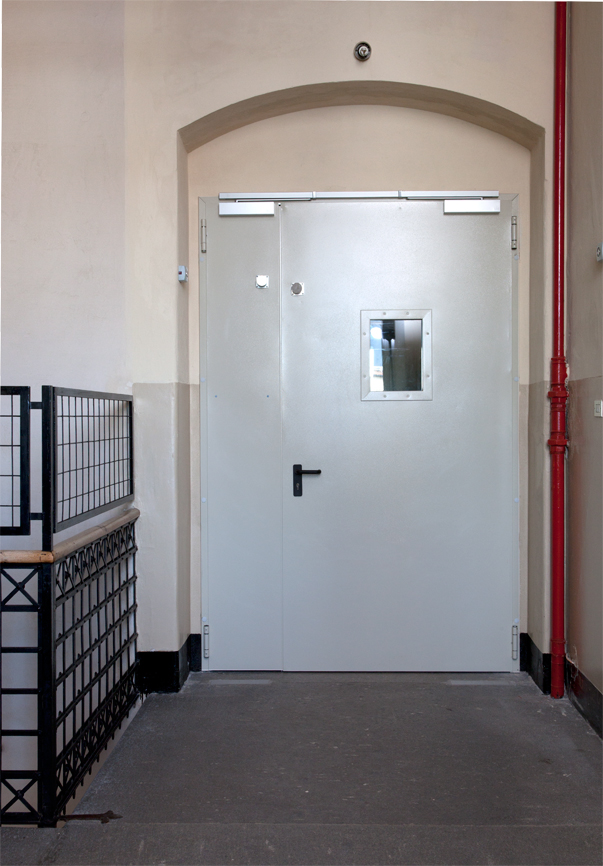

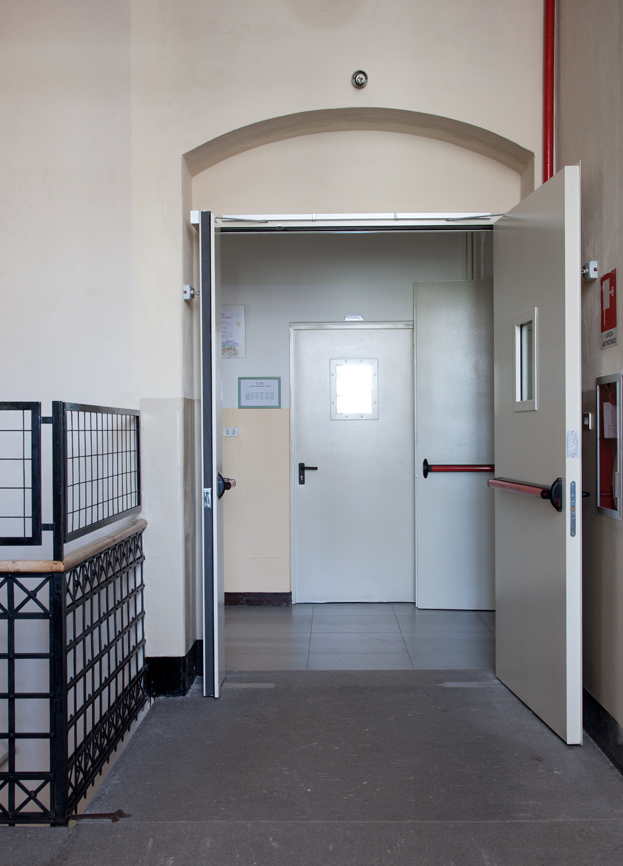

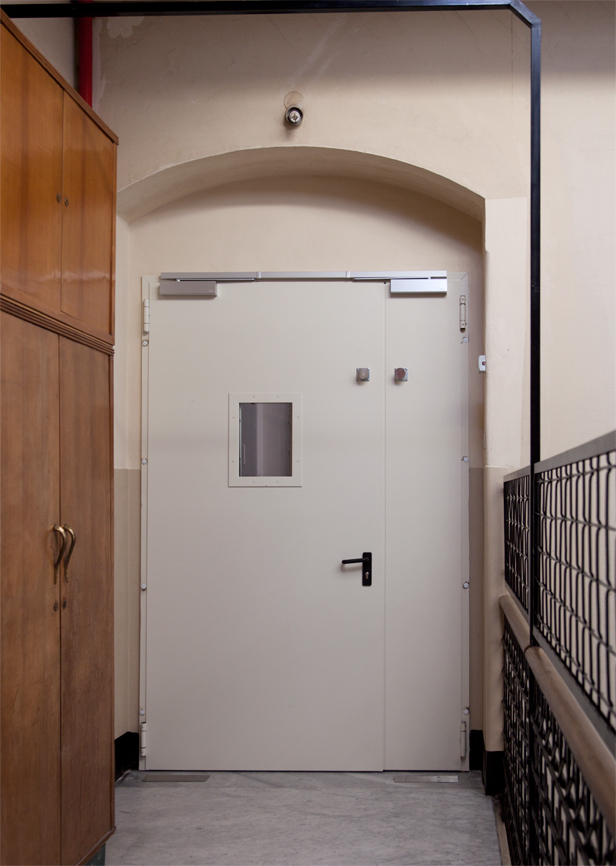

BS STD 2B REI 60 - REI 120 Hinged Double Door
Height-adjustable three-wing hinges with steel ball, self-closing with helical spring incorporated into the hinge.
The main door has a single-point fire lock, with nickel-plated through cylinder and pair of heat-resistant handles specifically for fire doors.
The secondary door has a counter lock with a self-locking flush bolt device during closing and a lever for opening.
Central locking selector concealed in the frame.
Series BS STD EI 60 - EI 120 CE
CE-marked external pedestrian fire door – Classe EI 60 – EI 120
In accordance with the EN 16034:2014 – EN 14351-1:2016 + A2:2016 standards
- Shaped frame in 1.5 mm-thick galvanized steel, with seat for gaskets for cold smoke sealing and thermo-expanding gasket for high temperature sealing.
- Door in 0.8 mm-thick galvanized steel sheet, pre-painted in a color similar to RAL 9010 light ivory, protected with film to be removed after installation. High-density internal insulation.
The total thickness of the door is 65 mm.
BS STD 1B REI 60 - EI 120 CE Hinged Single Door
Height-adjustable three-wing hinges with steel ball, self-closing with helical spring incorporated into the hinge.
Single-point fire lock, with nickel-plated through cylinder and pair of heat-resistant handles specifically for fire doors.
BS STD 2B REI 60 - EI 120 CE Hinged Double Door
Height-adjustable three-wing hinges with steel ball, self-closing with helical spring incorporated into the hinge.
The main door has a single-point fire lock, with nickel-plated through cylinder and pair of heat-resistant handles specifically for fire doors.
The secondary door has a counter lock with a self-locking flush bolt device during closing and a lever for opening.
Central locking selector concealed in the frame.
