Sisti Engineering’s glazed fire-rated doors and windows represent the most sophisticated fusion of fire protection and architectural quality.These solutions combine fire compartmentalisation with the transparency and brightness of glass, without compromising on certified performance. A design balance that brings together safety, elegance and design.
Transparency that does not compromise security
The transparency of glazed fire-resistant windows and doors is not an exception to safety requirements, but the result of advanced technologies applied with rigorous design standards. The laminated glass used – of the extra-clear type and characterised by high light transmittance – complies with the main European standards on fire resistance and forms an integral part of the fully tested and certified fire compartmentation system.
Sisti Engineering’s glazed fire-rated doors and windows are available in fire resistance classes EI 30, EI 60, EI 90 and EI 120, in accordance with harmonised European standards.
The structural core of glazed fire-rated windows and doors consists of profiles designed to combine high rigidity with a minimalist design, featuring slim profiles that enhance the aesthetics of the space without making the opening appear bulky. The two structural ranges available cater to different design requirements:

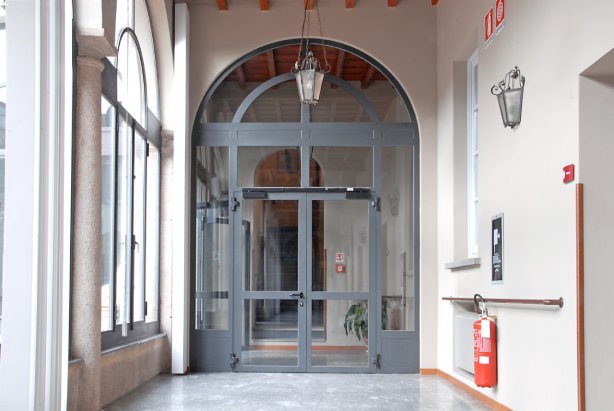

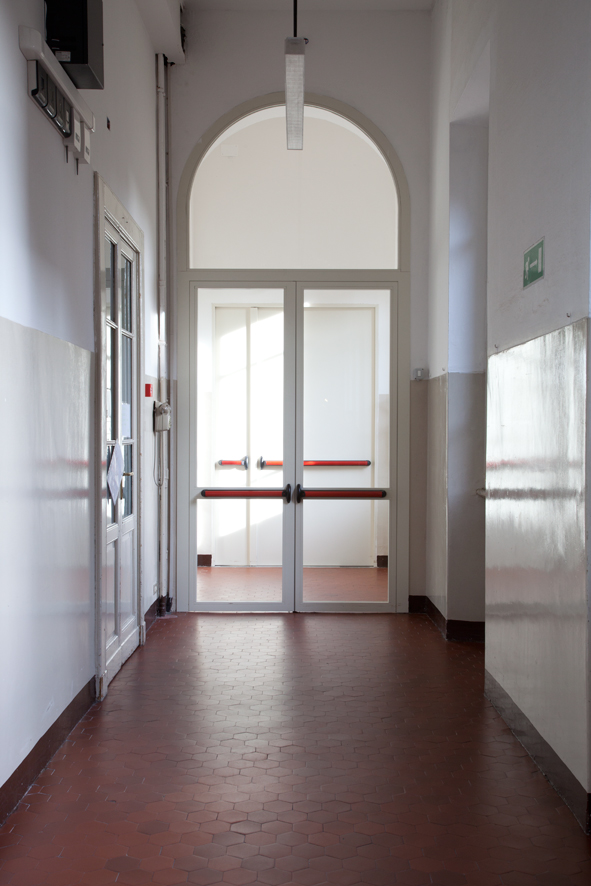

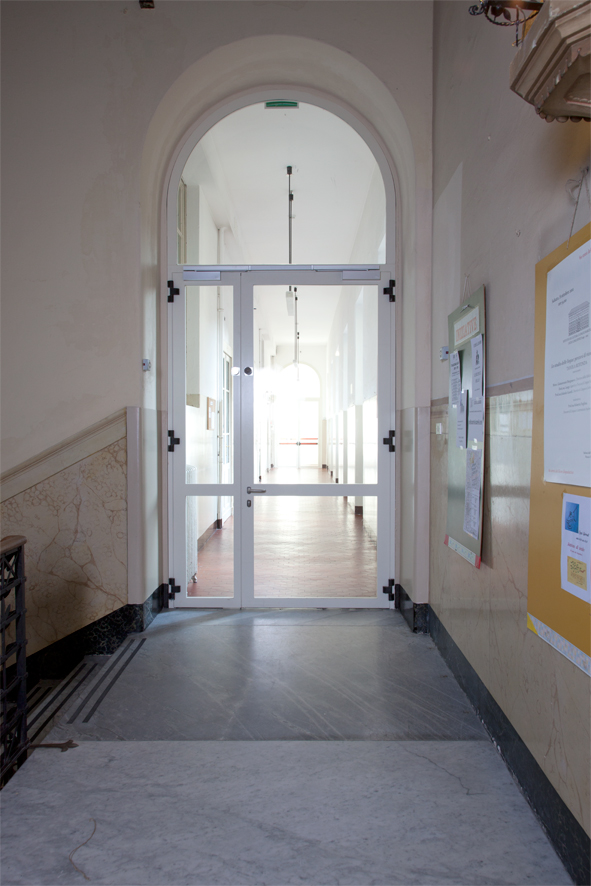

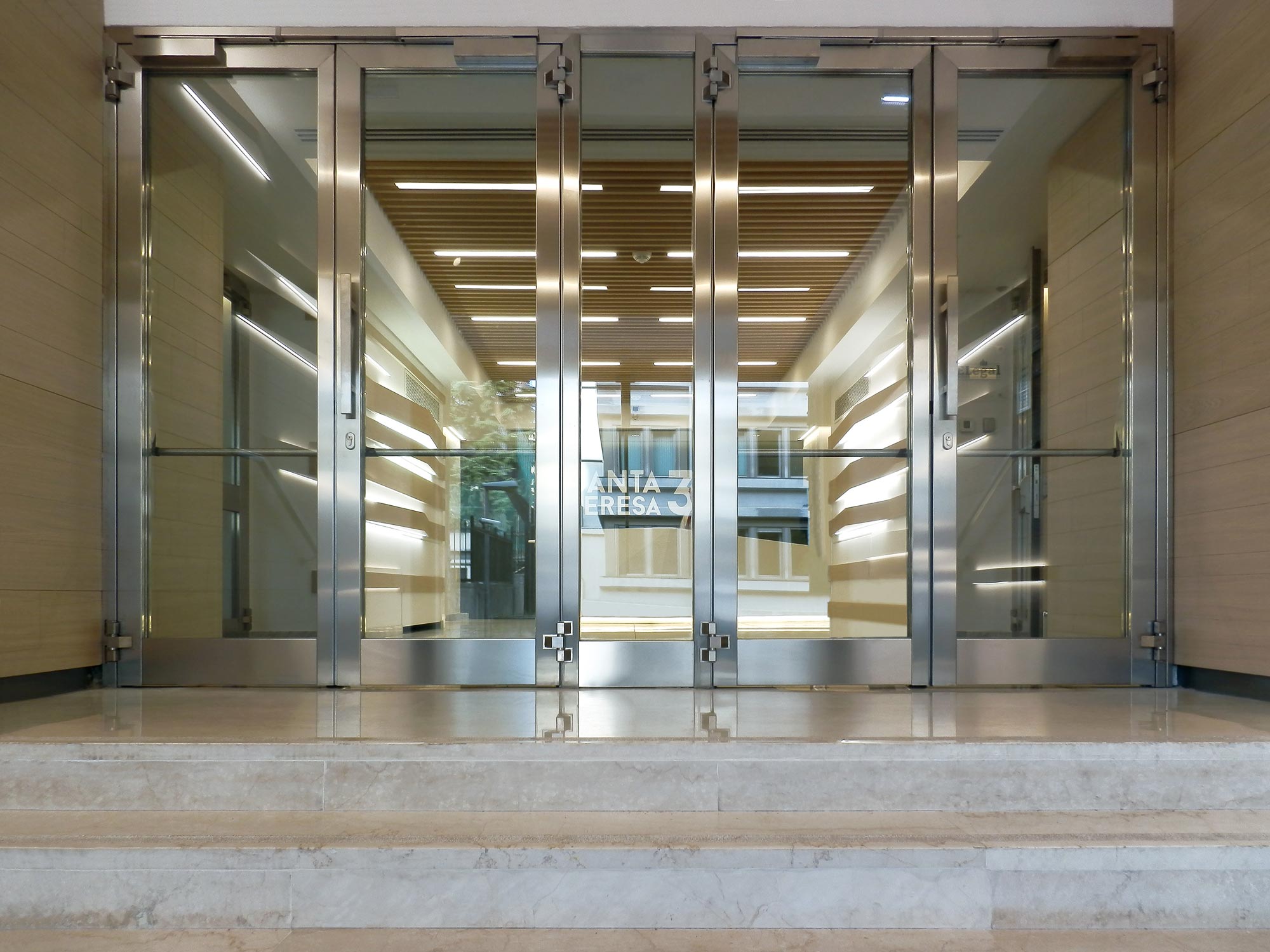

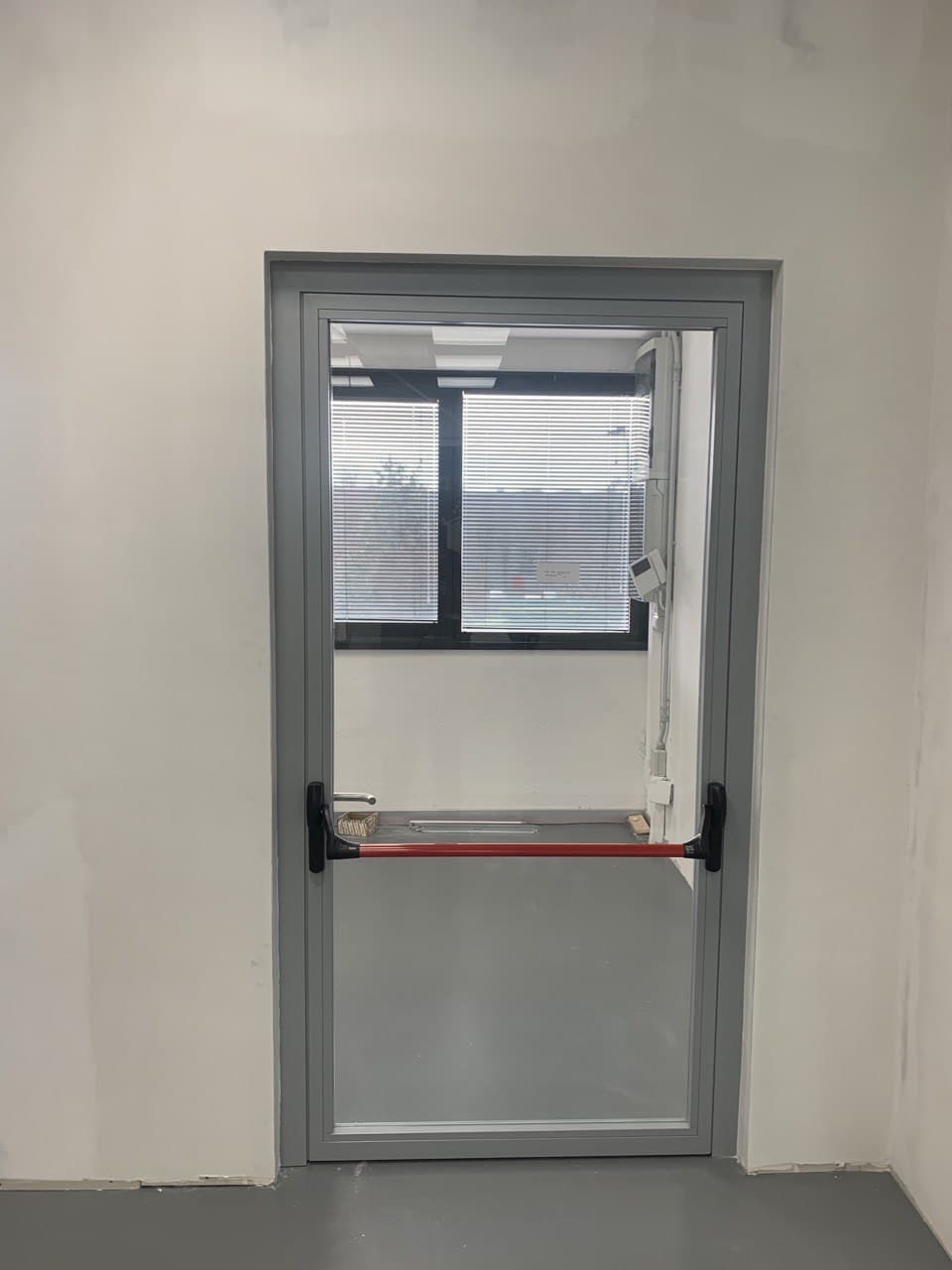

Steel fire-rated doors and windows
High-strength profiles, available as single- or double-leaf doors, in complex configurations with transom windows and side fixed panels, or as fixed elements. A solution suitable for industrial, commercial and infrastructure applications, where structural strength is a priority

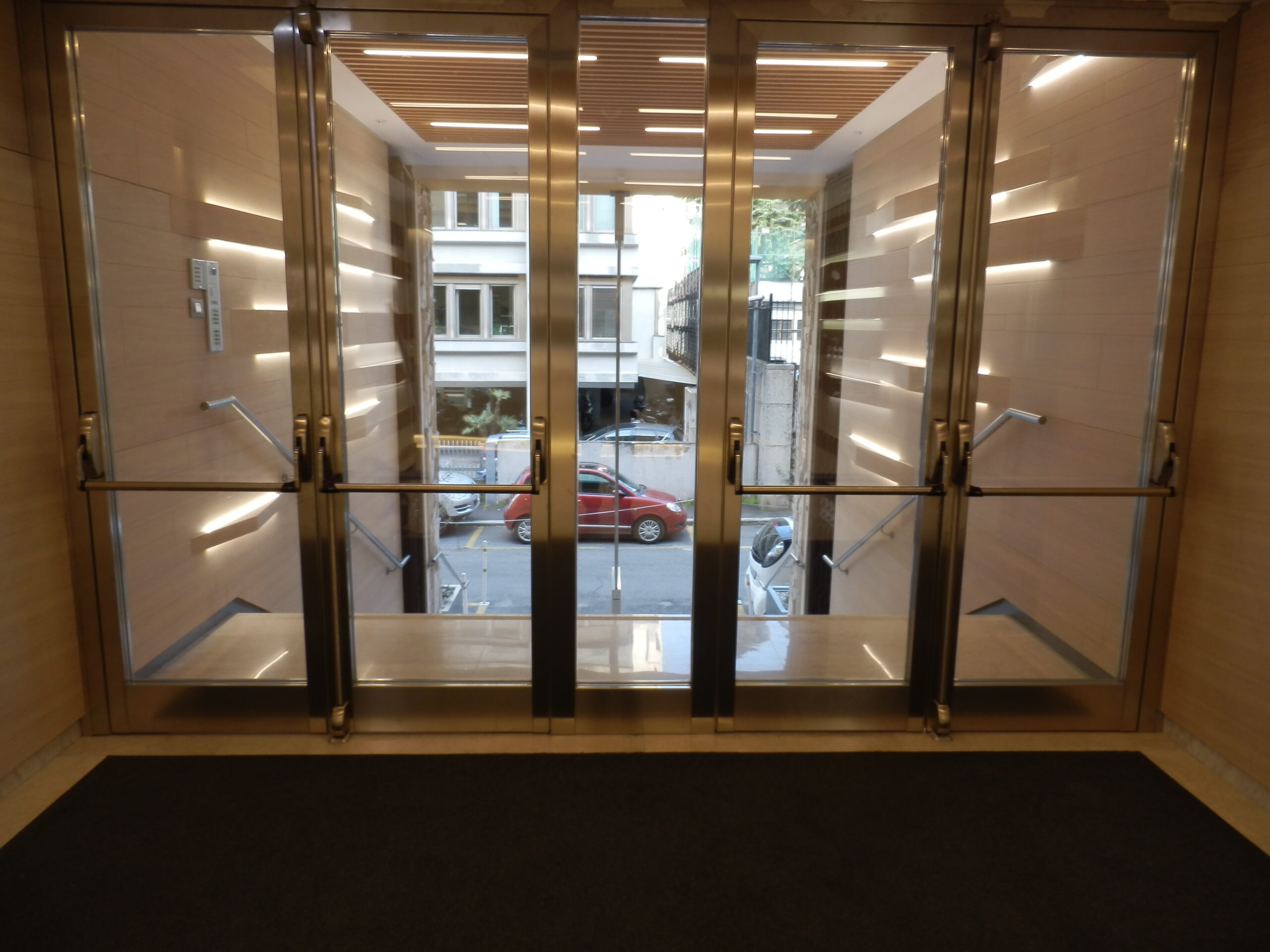

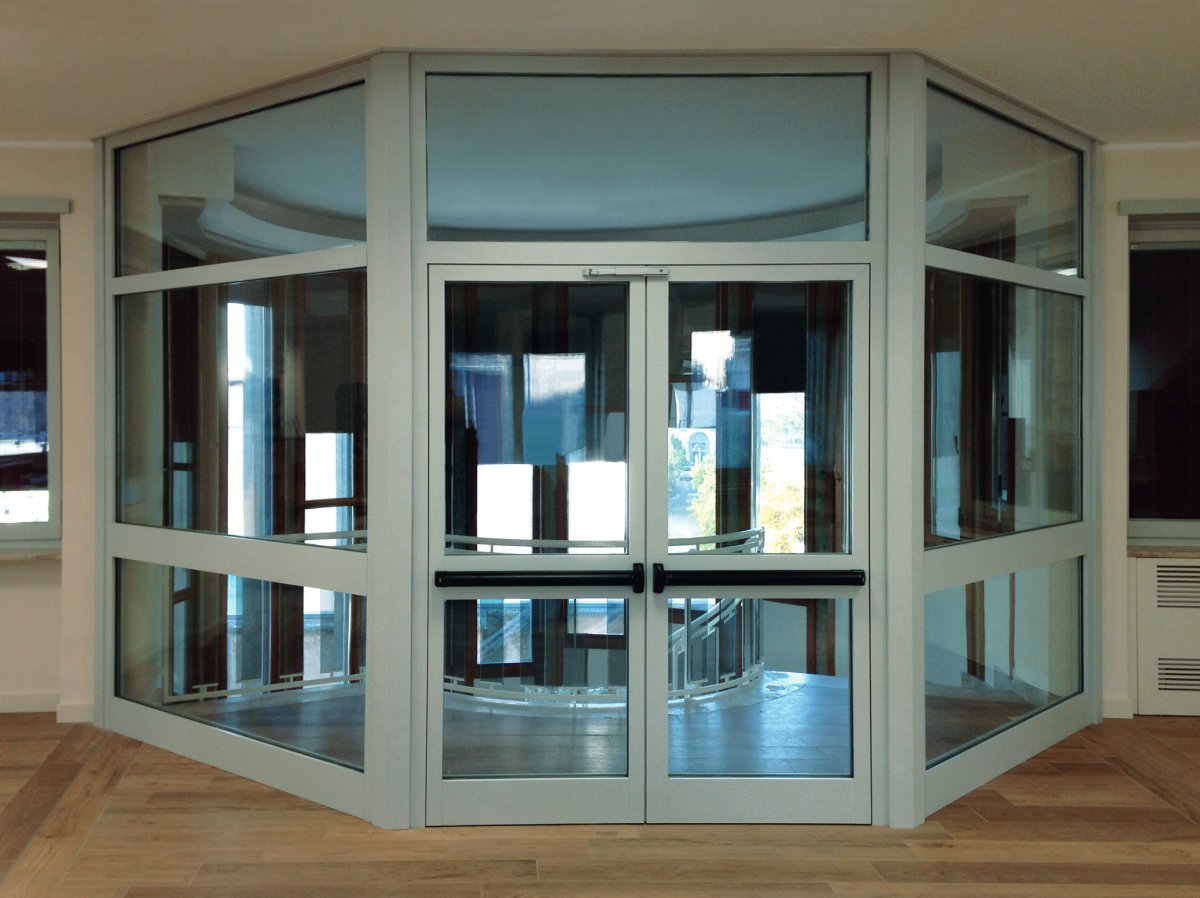

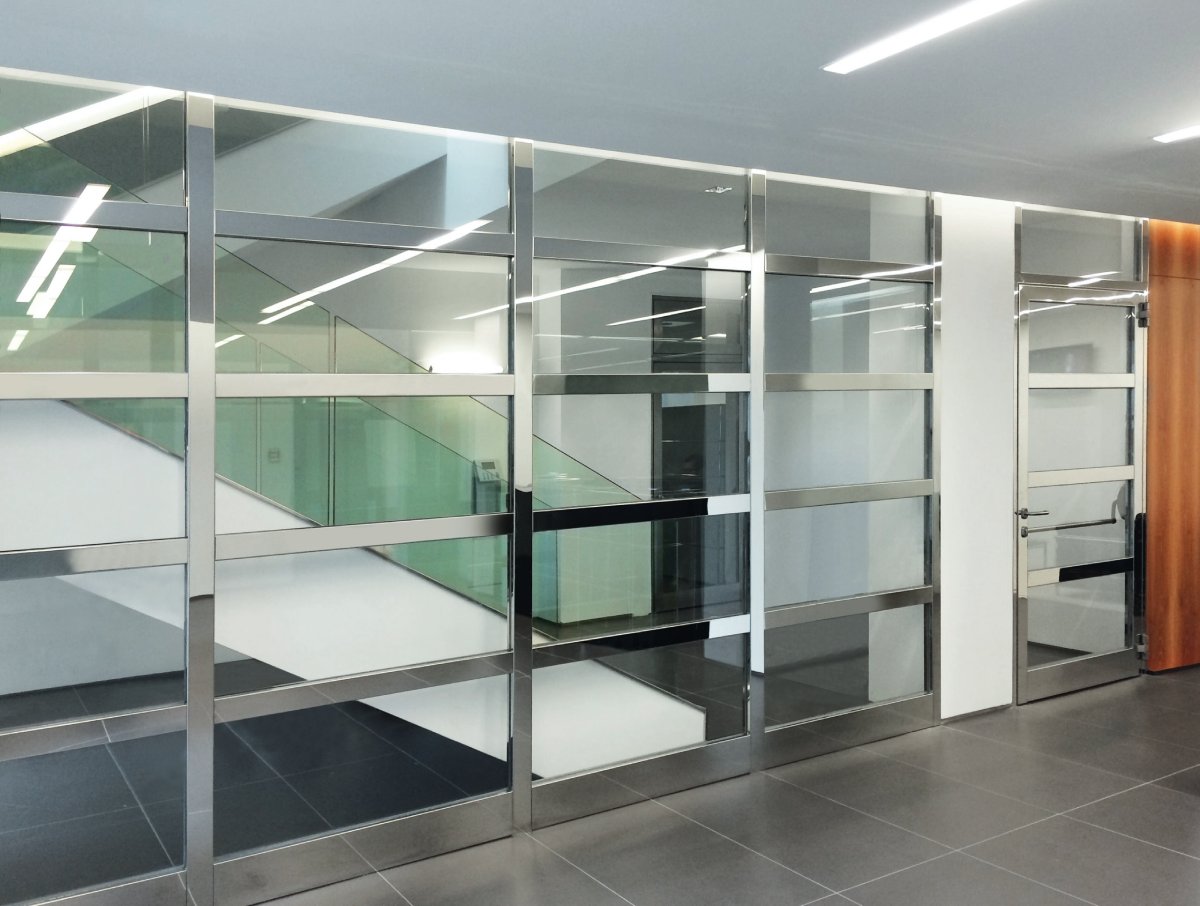

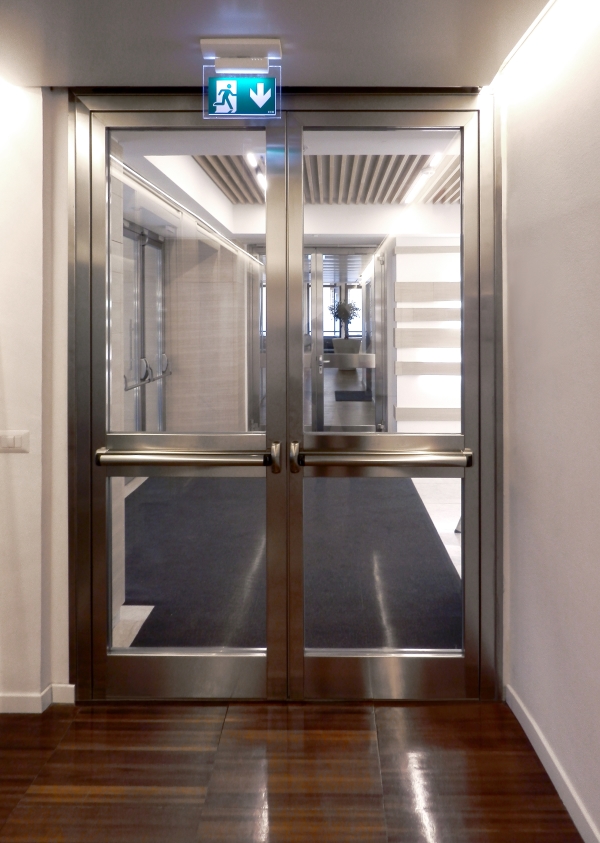

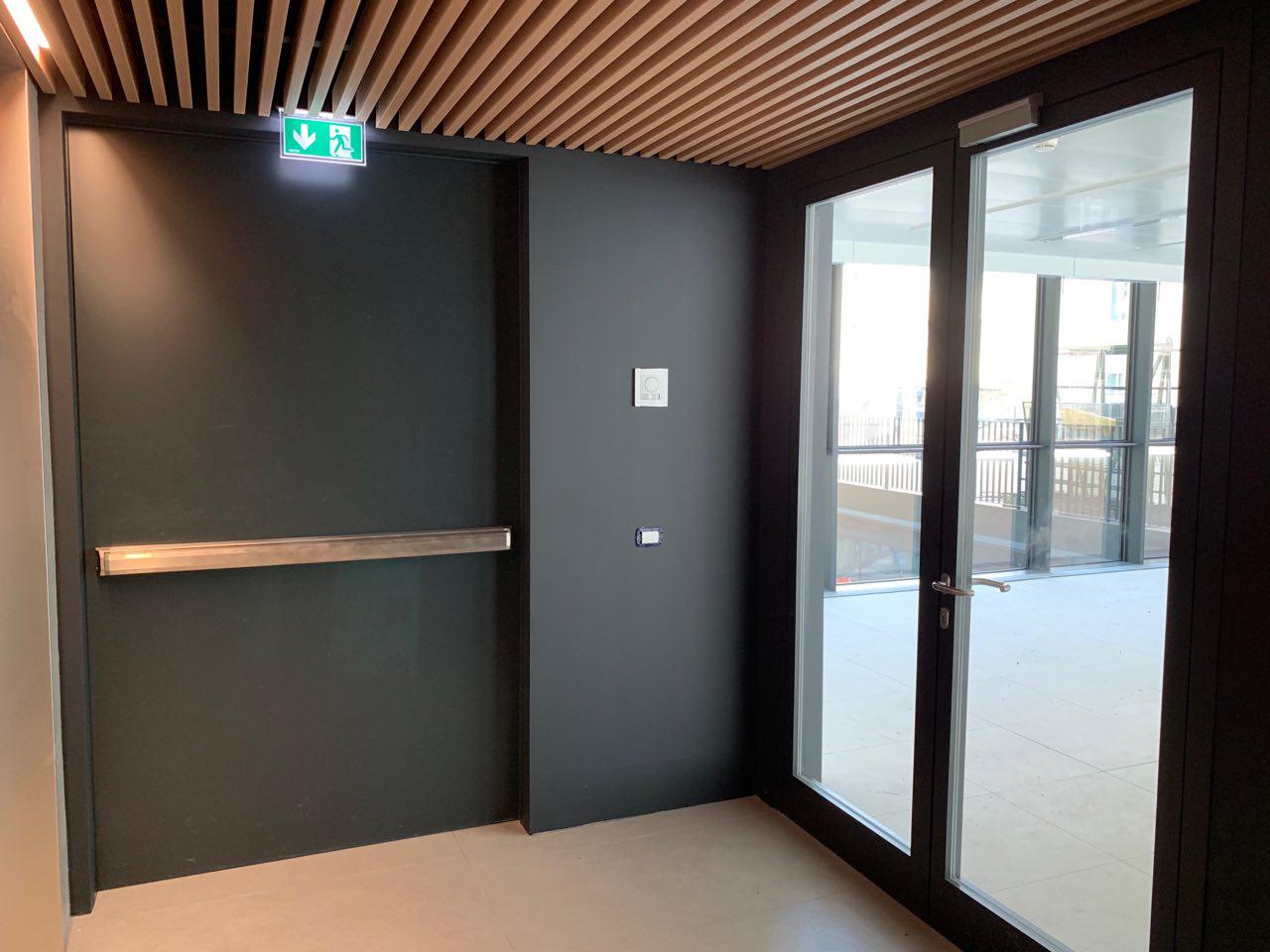

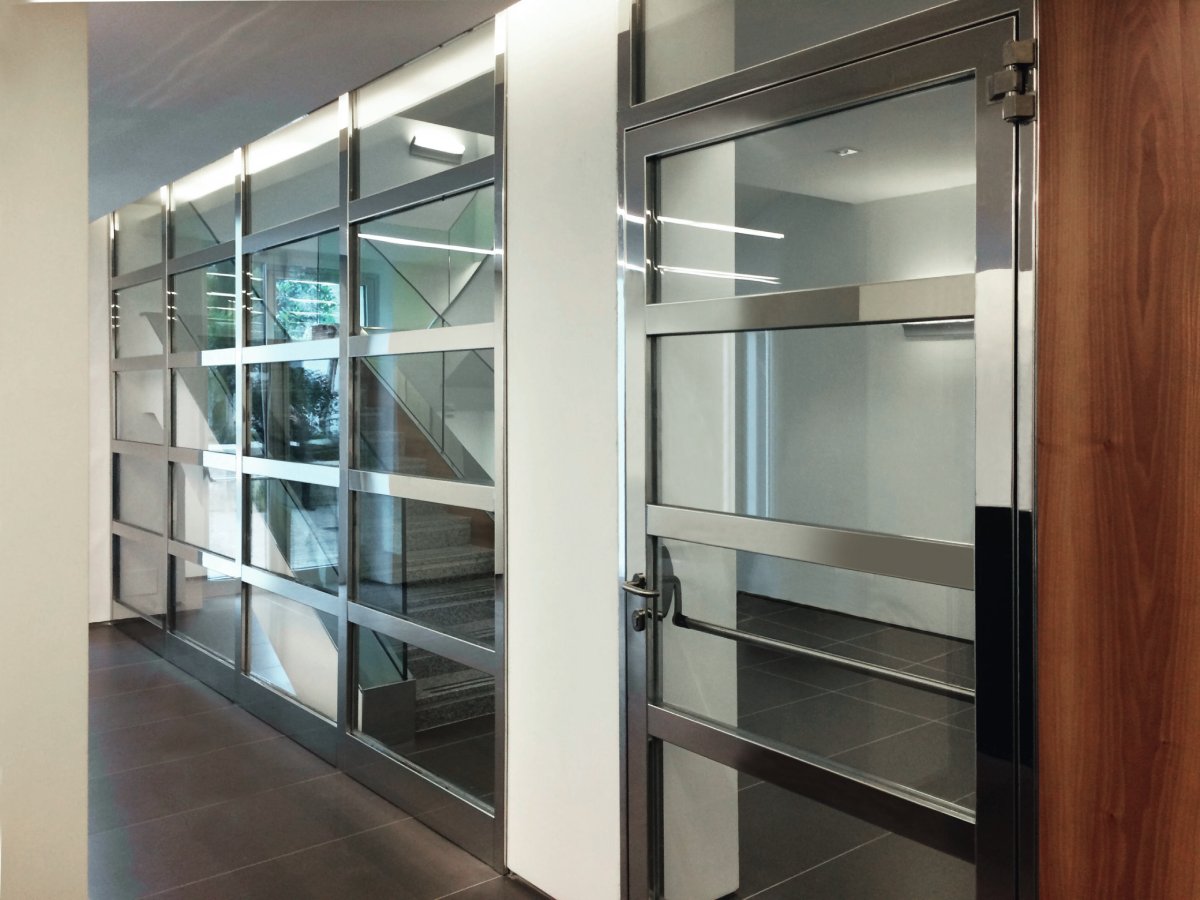

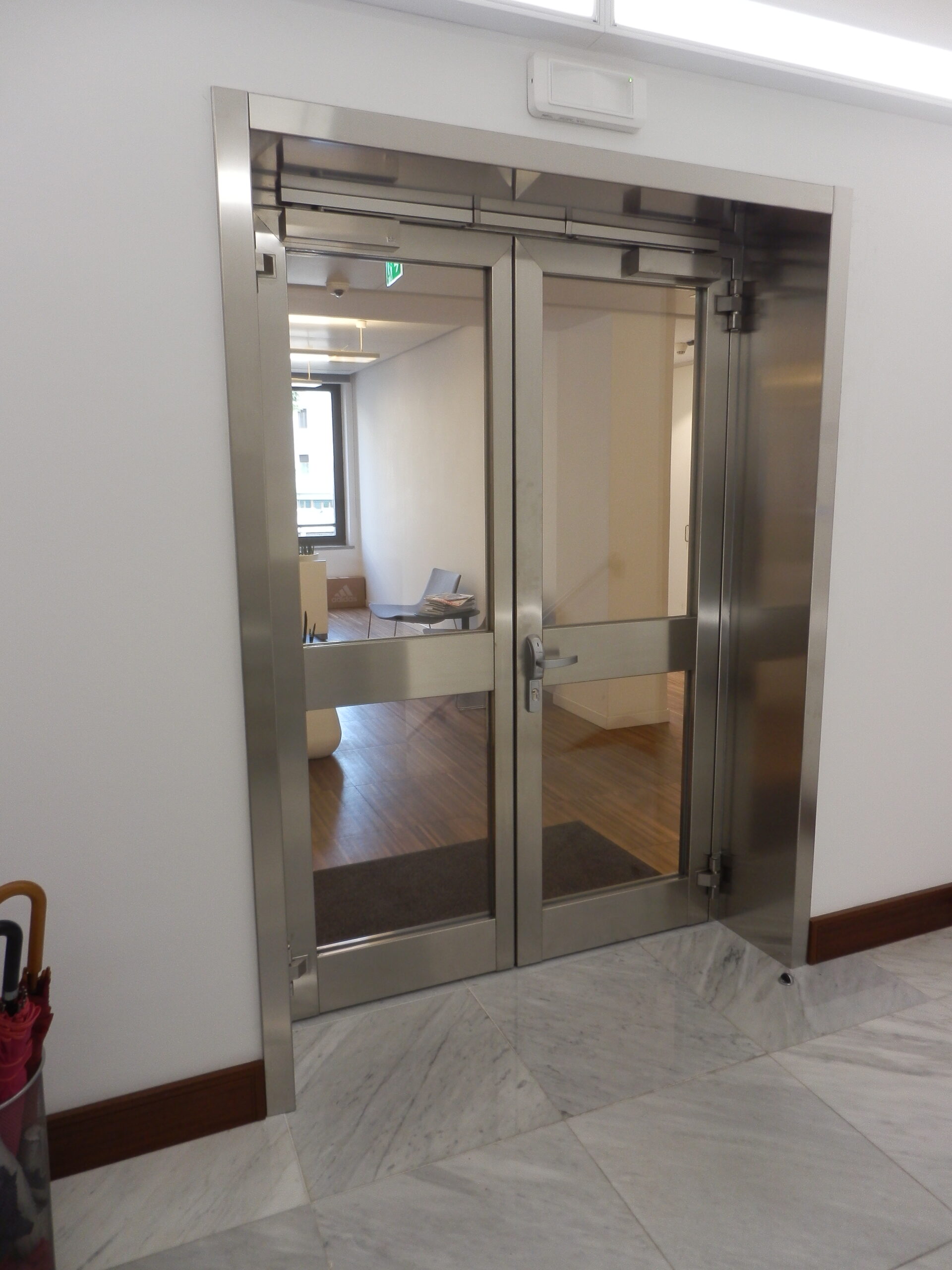

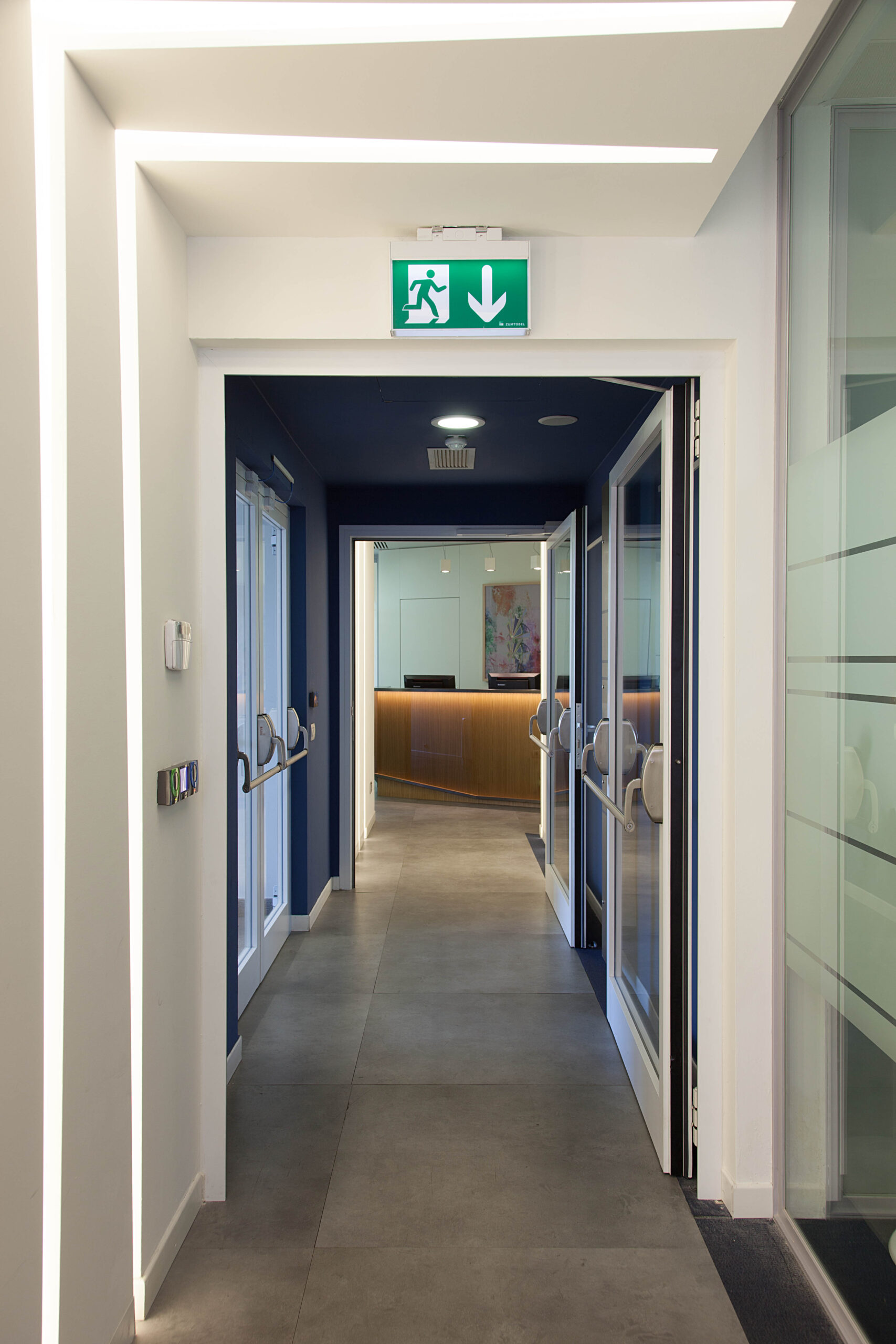

Aluminium fire-rated windows and doors
Single- or double-leaf systems, including complex configurations or as fixed elements. Ideal for high-end residential architecture, corporate headquarters and spaces where the visual lightness of the profile is an essential design requirement.
High-quality finishes and coverings
Glazed fire-rated doors and windows are designed to blend seamlessly into even the most aesthetically demanding settings. Finishes can be selected from among the finest options available, ensuring they fit harmoniously into high-end environments such as luxury hotels, institutional buildings, private residences, museums and art galleries. The wide variety of configurations, including complex solutions with transom windows and fixed side panels, enables us to meet any architectural requirement precisely, even in the most intricate applications.
To round off the range, Sisti Engineering offers an extensive catalogue of accessories and functional solutions, designed to meet every application requirement: automatic closing devices, anti-panic systems, holding solenoids, pull-handles and designer fittings, as well as automation systems that can be integrated with the building’s fire protection system. The team of specialists supports the client at every stage, offering consultancy support that guides them from selecting the most suitable solution right through to certified installation.
Series BS VXFE EI 60 - 90 - 120
Internal Steel Glass Fireproof Window for pedestrians Class EI 60 – EN 1634-1
Approved in accordance with the Ministerial Decree of 21/06/2014
- Window frame constructed with a 1.5 mm-thick tubular steel frame, cold profiled, internally insulated with asbestos-free silicate-based cement matrix sheets, with containment seats for the double cold smoke and thermo-expanding seals.
- Horizontal strip at the height of the lock.
- The total thickness of the window is 50 mm.
- PYROSTOP fireproof glass consisting of float sheets with fireproof material sandwiched between them, total thickness 21-23 mm. Laminated glass becomes opaque when exposed to sunlight or temperatures above 45°C.
- Surface finish by means of thermoset powder coating for interiors: Available colours RAL1013-3000-5010-6005-7016-7035-8017-9006-9010.
Internal Steel Glass Fireproof Window for pedestrians Class EI 90 – EI 120 – EN 1634-1
Approved in accordance with the Ministerial Decree of 21/06/2014
- Window frame constructed with a 1.5 mm-thick tubular steel frame, cold profiled, internally insulated with asbestos-free silicate-based cement matrix sheets, with containment seats for the double cold smoke and thermo-expanding seals.
- Horizontal strip at the height of the lock.
- The total thickness of the window is 80 mm.
- PYROSTOP fireproof glass consisting of float sheets with fireproof material sandwiched between them, total thickness 51-54 mm. Laminated glass becomes opaque when exposed to sunlight or temperatures above 45°C.
- Surface finish by means of thermoset powder coating for interiors: Available colours RAL1013-3000-5010-6005-7016-7035-8017-9006-9010.

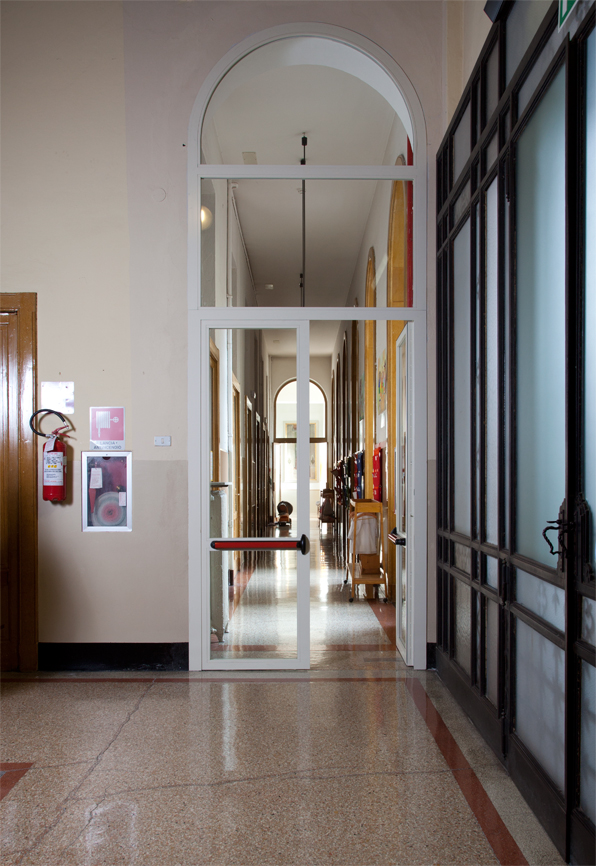

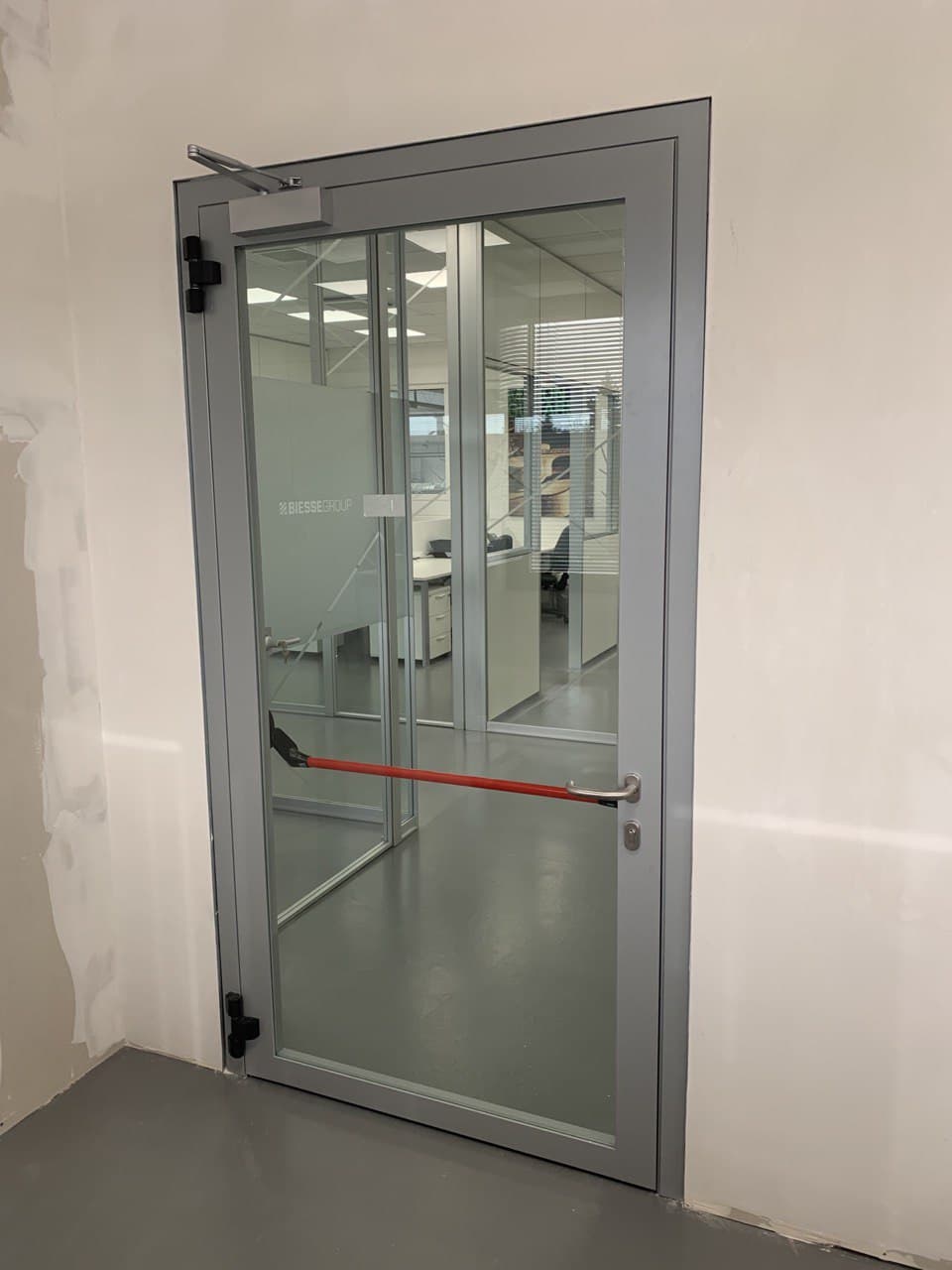

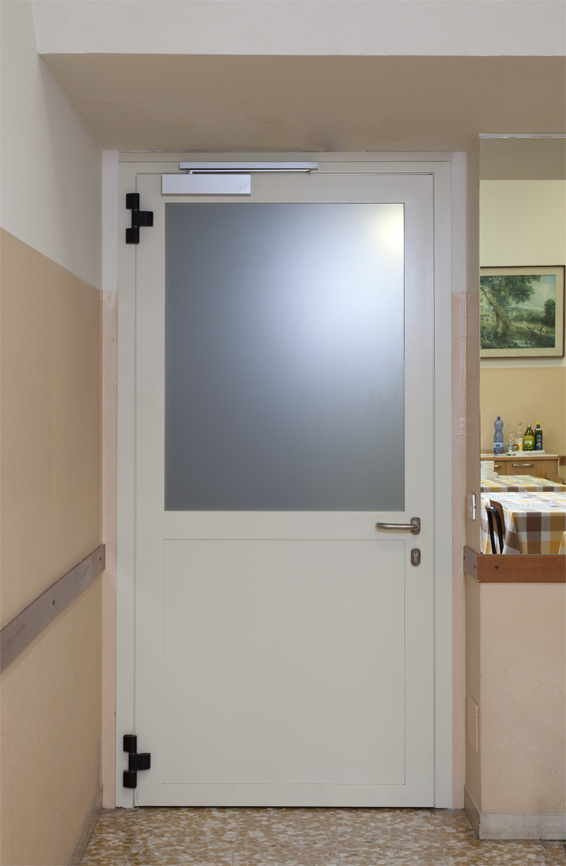

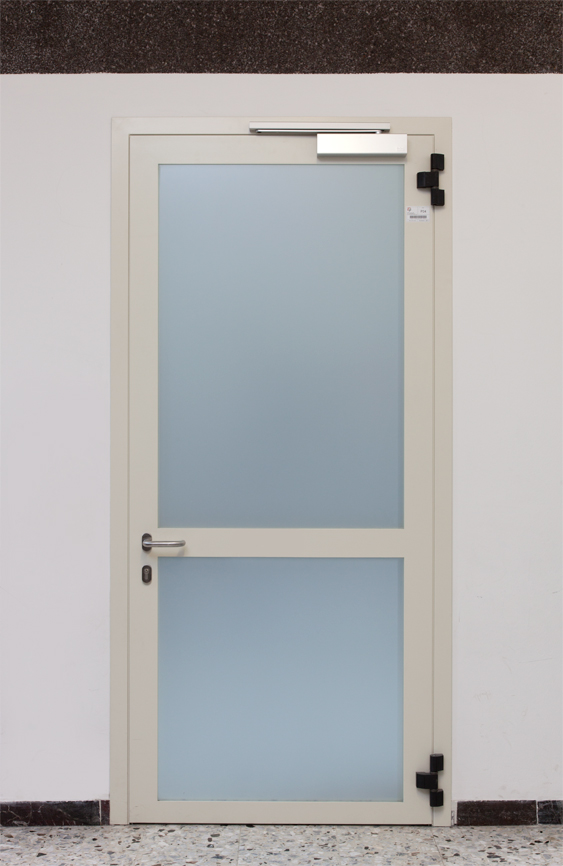

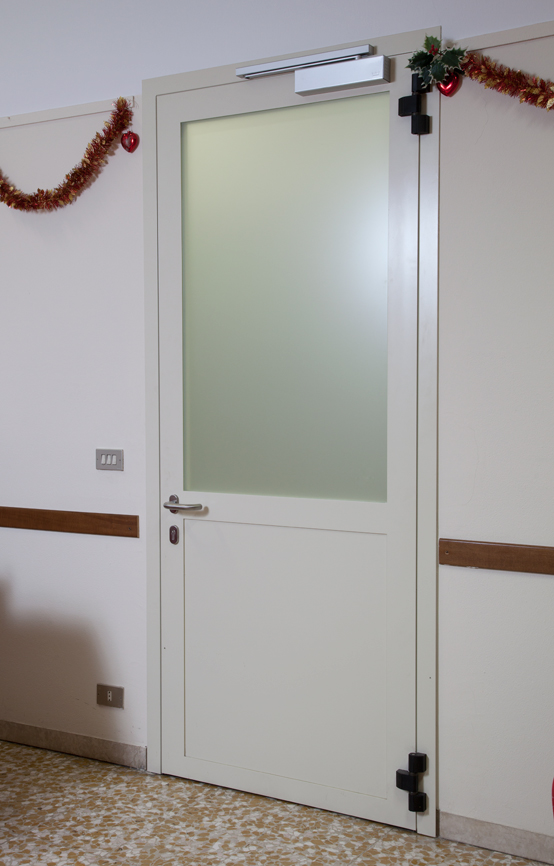

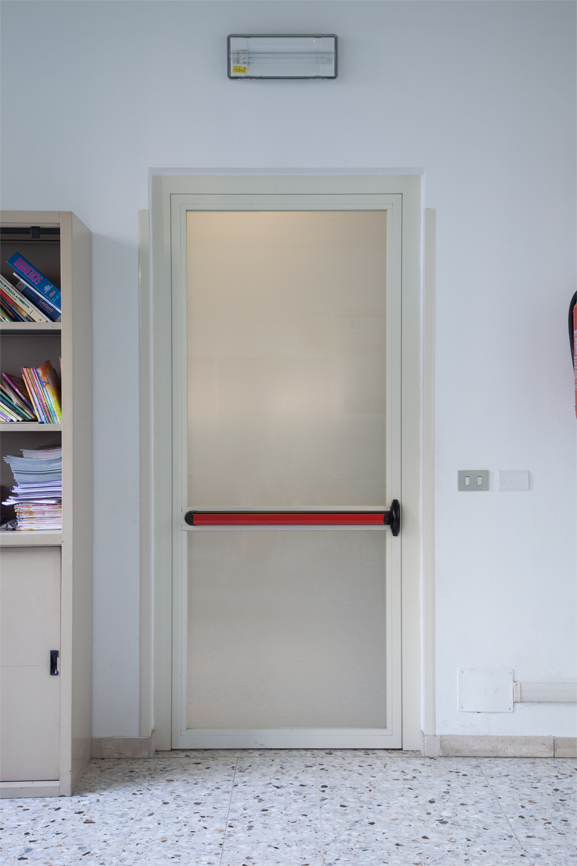

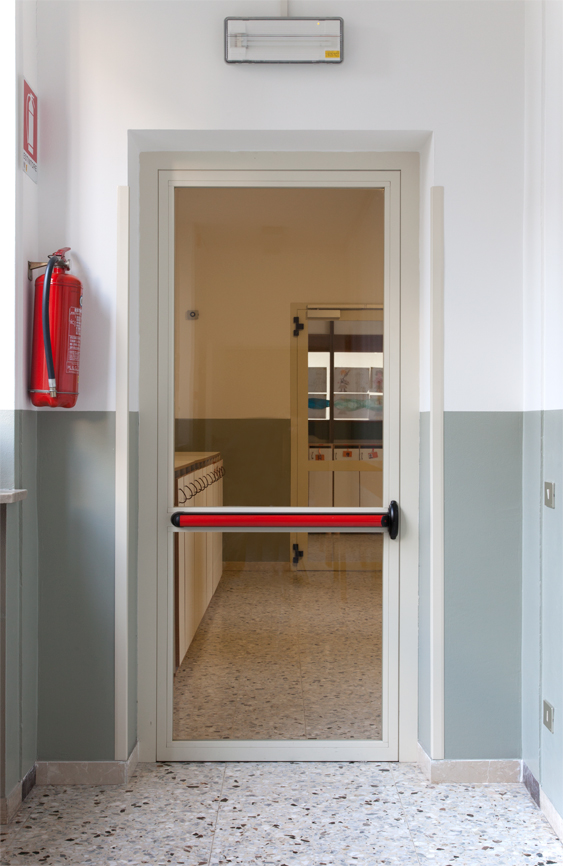

BS VXFE 1B Hinged Single Glass Door
Adjustable three-wing steel hinges screwed to the frame, with thrust bearings, stainless steel pins.
Fire-resistant lock with nickel-plated through cylinder and pair of heat-resistant stainless-steel handles for fire doors, complete with roses and escutcheons.
Overhead door closer with compass arm.

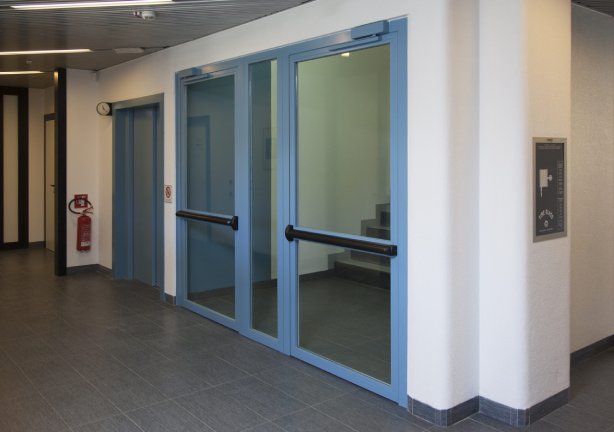

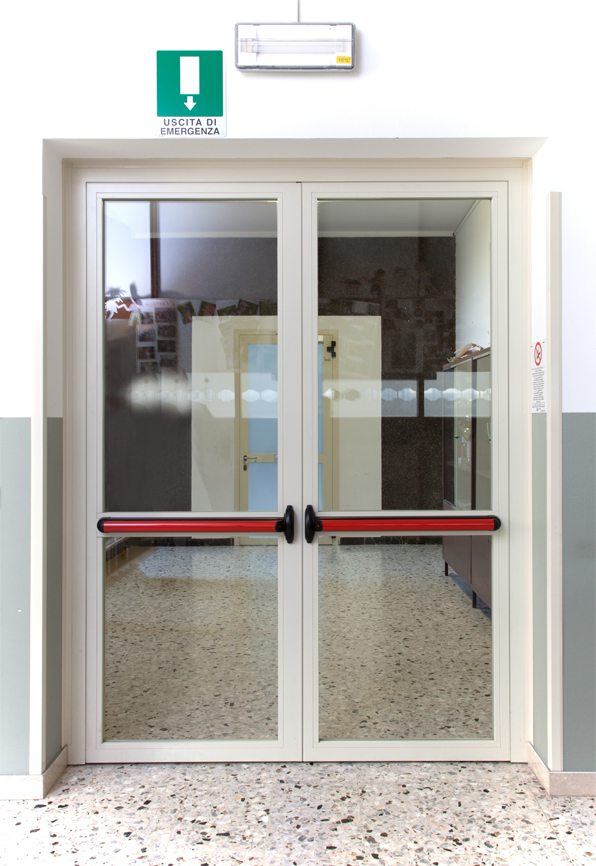

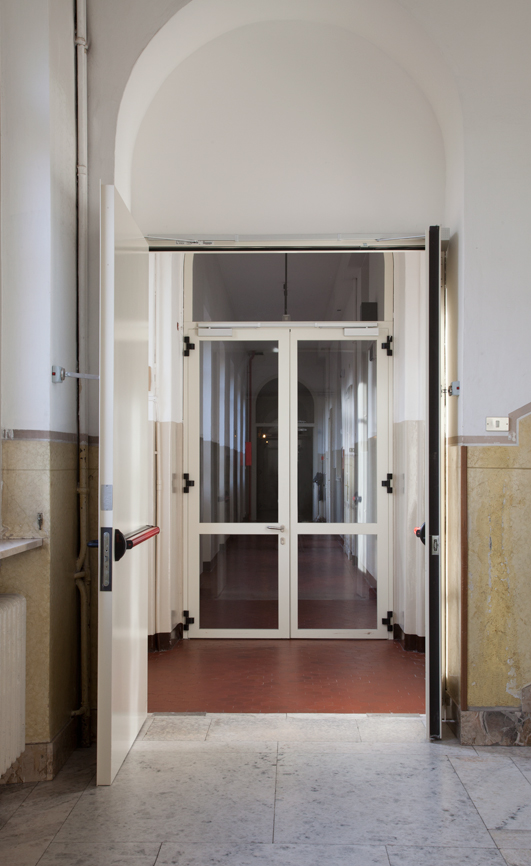

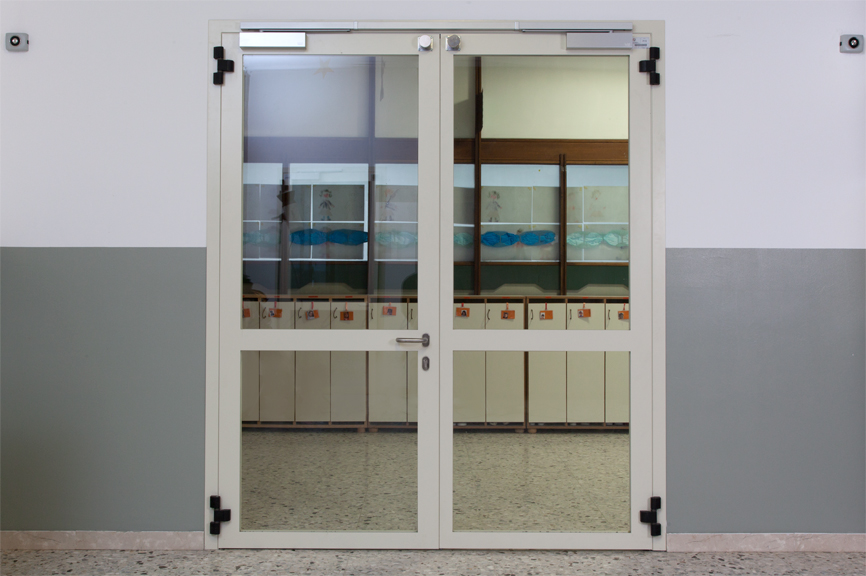

BS VXFE 2B Hinged Double Glass Door
Adjustable three-wing steel hinges screwed to the frame, with thrust bearings, stainless steel pins.
The main door has a fire-resistant lock with nickel-plated through cylinder and pair of heat-resistant stainless-steel handles for fire doors, complete with roses and escutcheons.
The secondary door has a counter lock with a self-locking flush bolt device during closing and a lever for opening.
Overhead door closer with compass arm on each door.
Central locking selector.

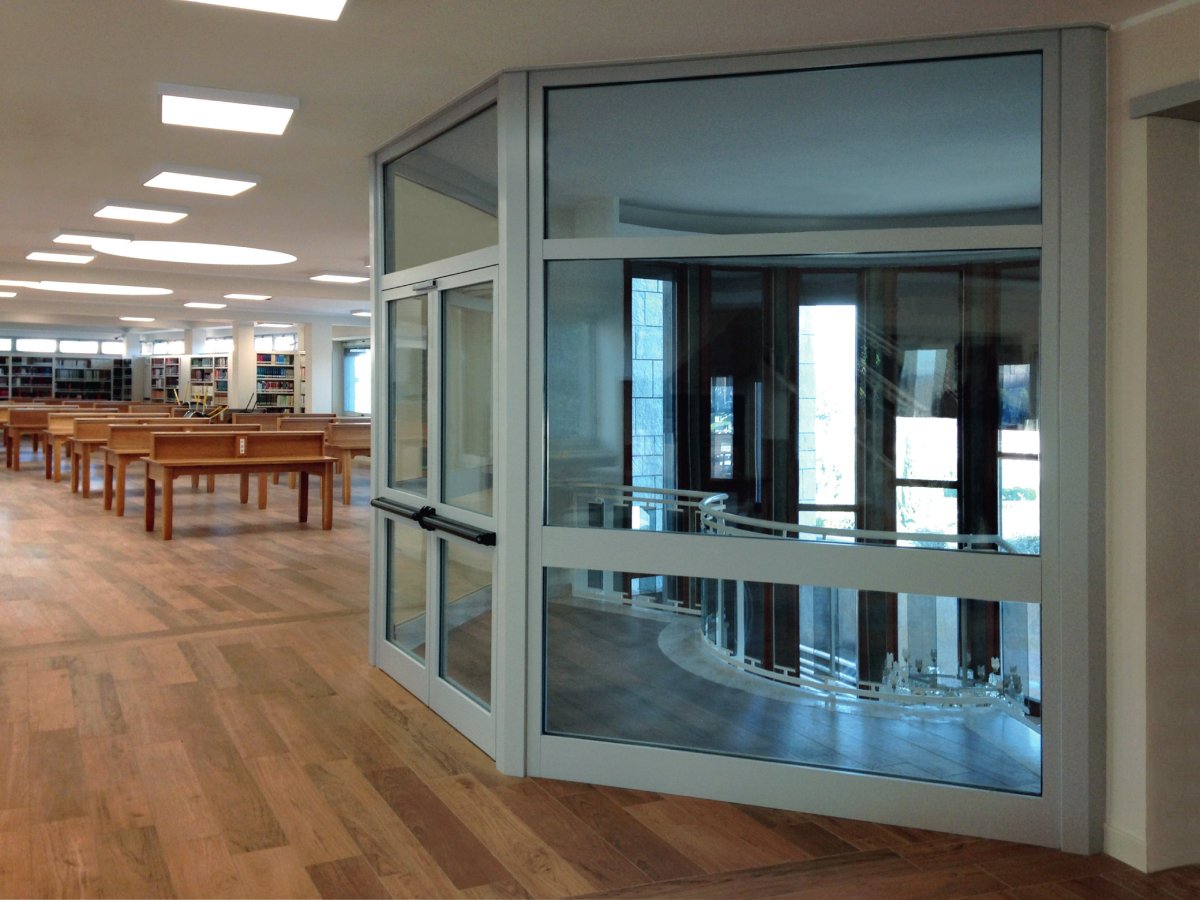

Series BS VXAL EI 60 – EI 90 – EI 120 CE
Internal Aluminium Glass Fireproof Window for pedestrians Class EI 60 – EN 1634-1
Approved in accordance with the Ministerial Decree of 21/06/2014
- Window frame constructed with a load-bearing frame in 3 mm-thick tubular galvanized steel, protected on two sides by silicate-based cement matrix sheets mechanically affixed to the structure.
- Cladding with extruded aluminium profiles, shaped so that the frame is flush with the door, with containment seats for the double cold smoke and thermo-expanding seals.
- Horizontal strip at the height of the lock and 170 mm baseboard.
- The total thickness of the window is 70 mm.
- PYROSTOP fireproof glass consisting of float sheets with fireproof material sandwiched between them, total thickness 21-23 mm. Laminated glass becomes opaque when exposed to sunlight or temperatures above 45°C.
- Surface finish by means of painting or anodizing: Available colours RAL1013-3000-5010-6005-7016-7035-8017-9006-9010
- Standard anodizing Silver OX – Black OX.
Internal Glass Fireproof Window for pedestrians Class EI 120 – EN 1634-1
Approved in accordance with the Ministerial Decree of 21/06/2014
- Window frame constructed with a 1.5 mm-thick tubular steel frame, cold profiled, internally insulated with asbestos-free silicate-based cement matrix sheets, with containment seats for the double cold smoke and thermo-expanding seals.
- Horizontal strip at the height of the lock.
- The total thickness of the window is 95 mm.
- PYROSTOP fireproof glass consisting of float sheets with fireproof material sandwiched between them, total thickness 51-54 mm. Laminated glass becomes opaque when exposed to sunlight or temperatures above 45°C.
- Surface finish by means of painting or anodizing: Available colours RAL1013-3000-5010-6005-7016-7035-8017-9006-9010
- Standard anodizing Silver OX – Black OX.

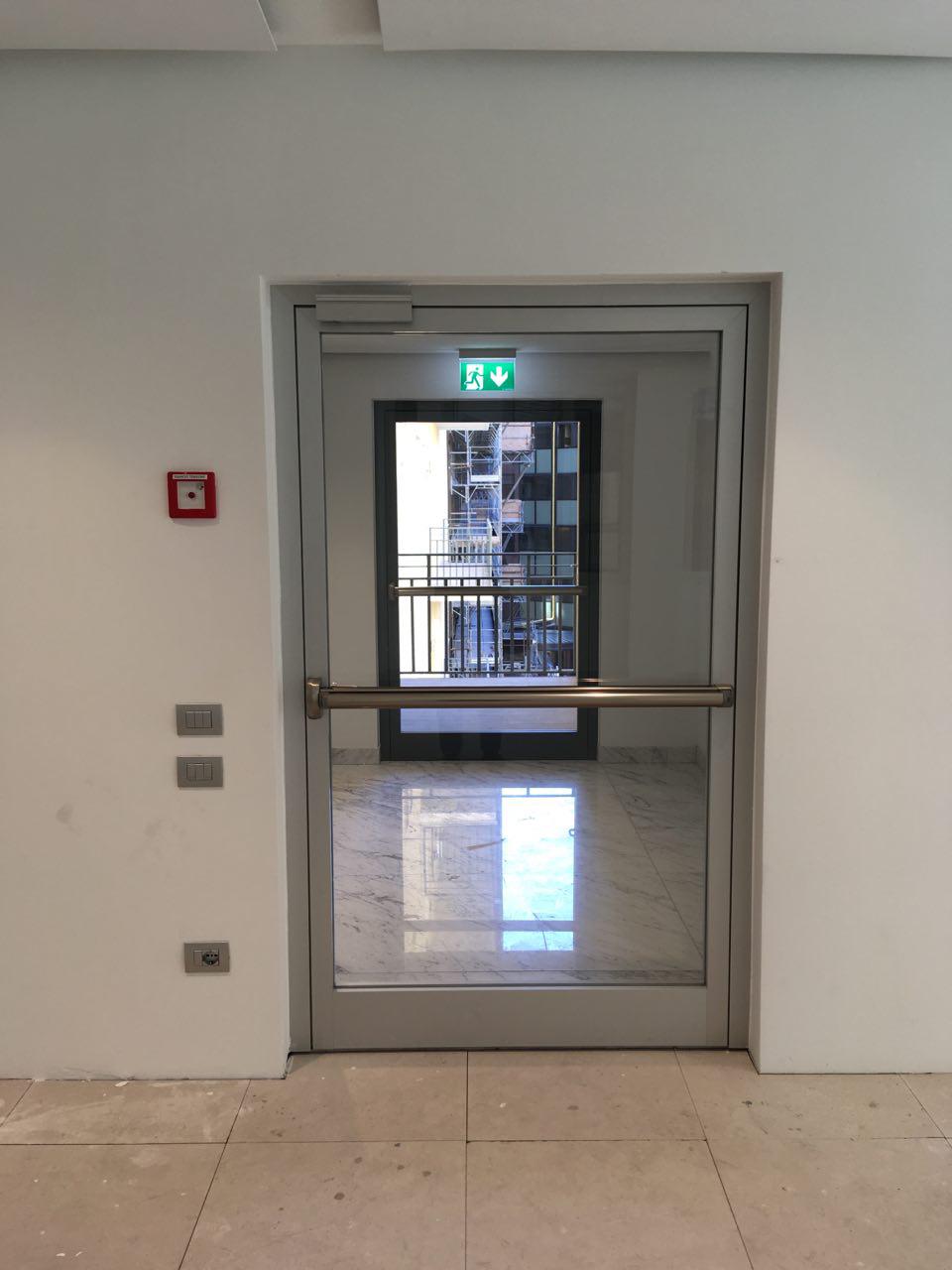

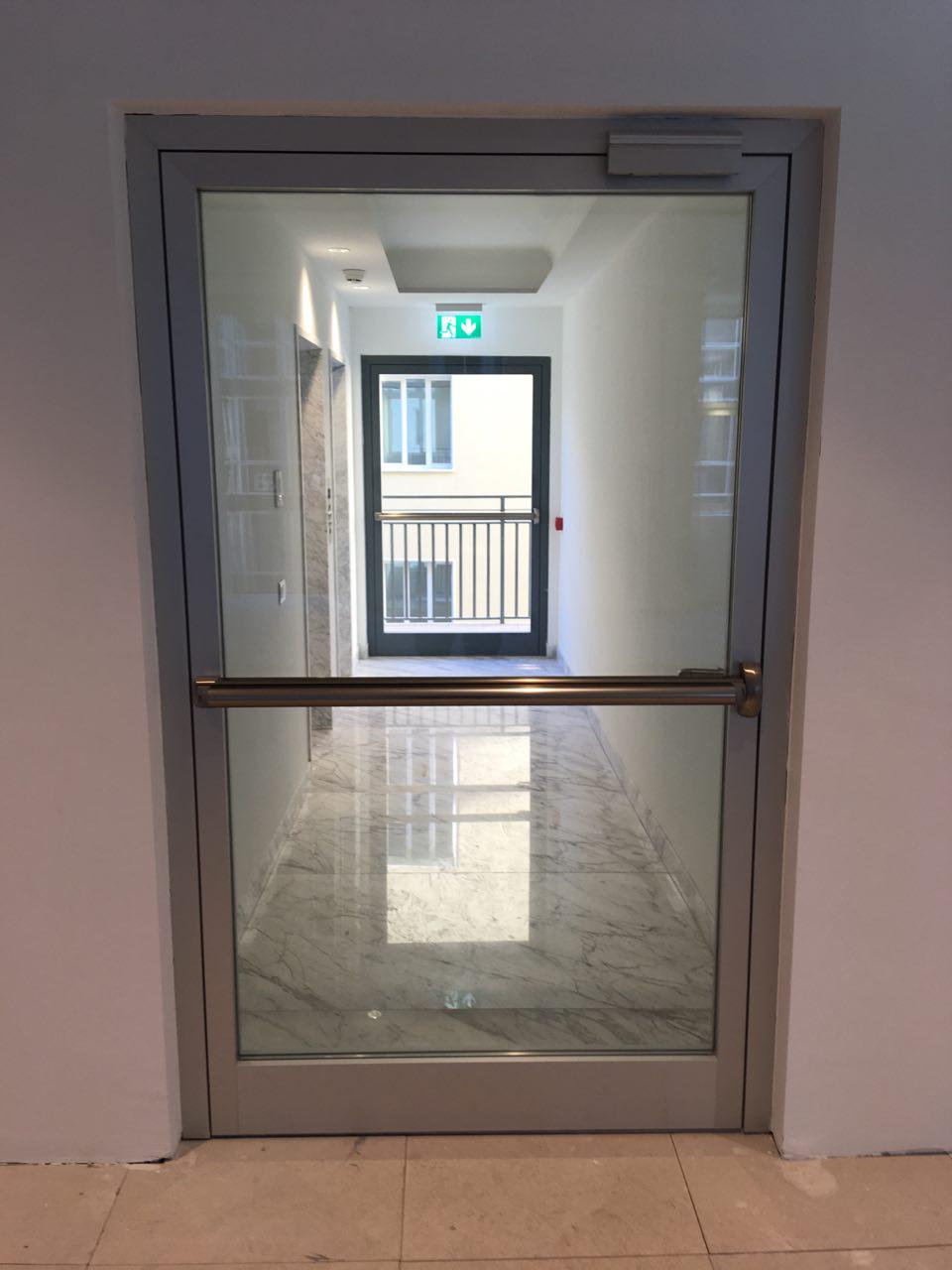

BS VXAL 1B Hinged Single Glass Door
Adjustable three-wing steel hinges screwed to the frame, with thrust bearings, stainless steel pins.
Fire-resistant lock with nickel-plated through cylinder and pair of heat-resistant stainless-steel handles for fire doors, complete with roses and escutcheons.
Overhead door closer with compass arm.

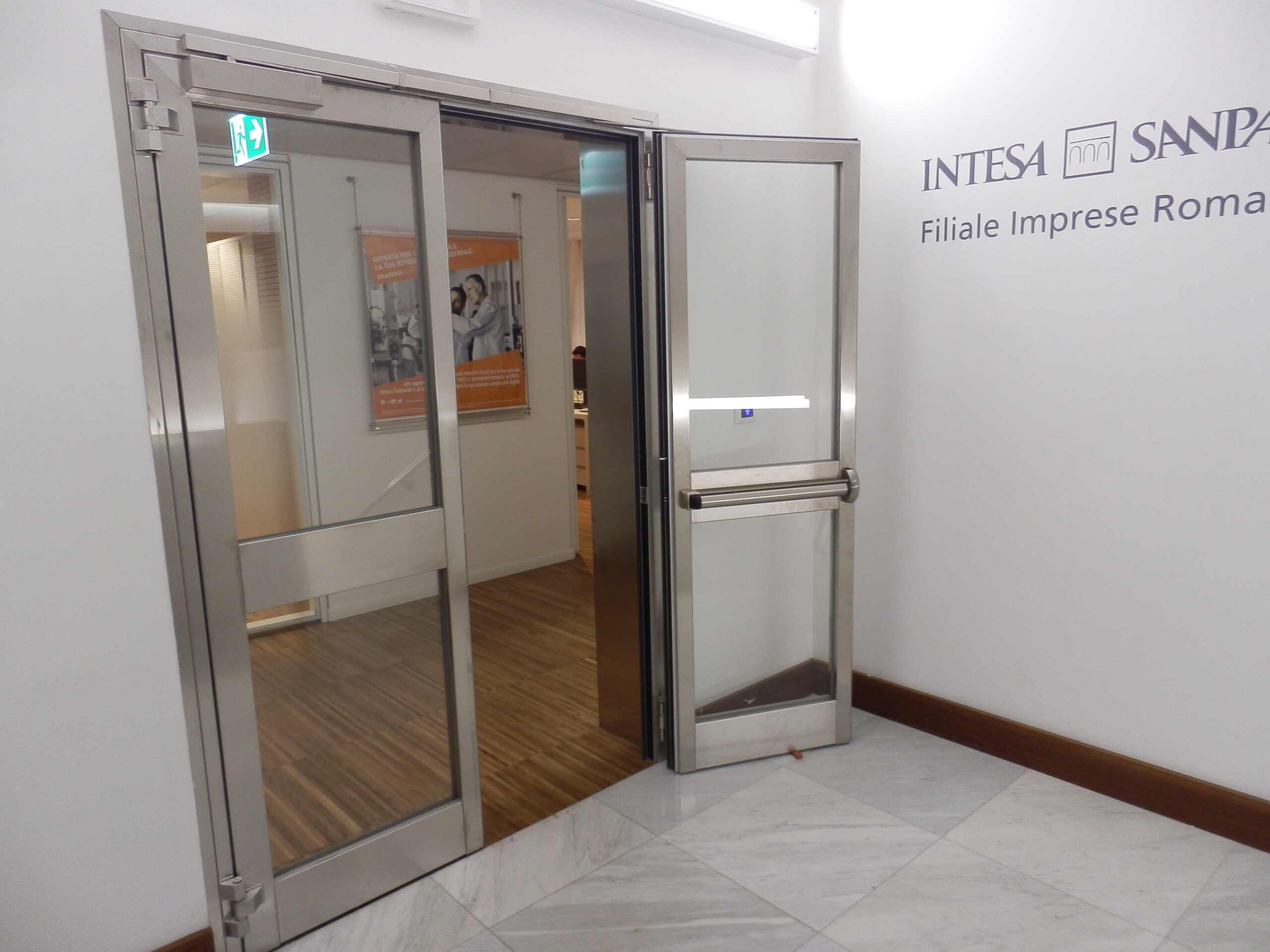

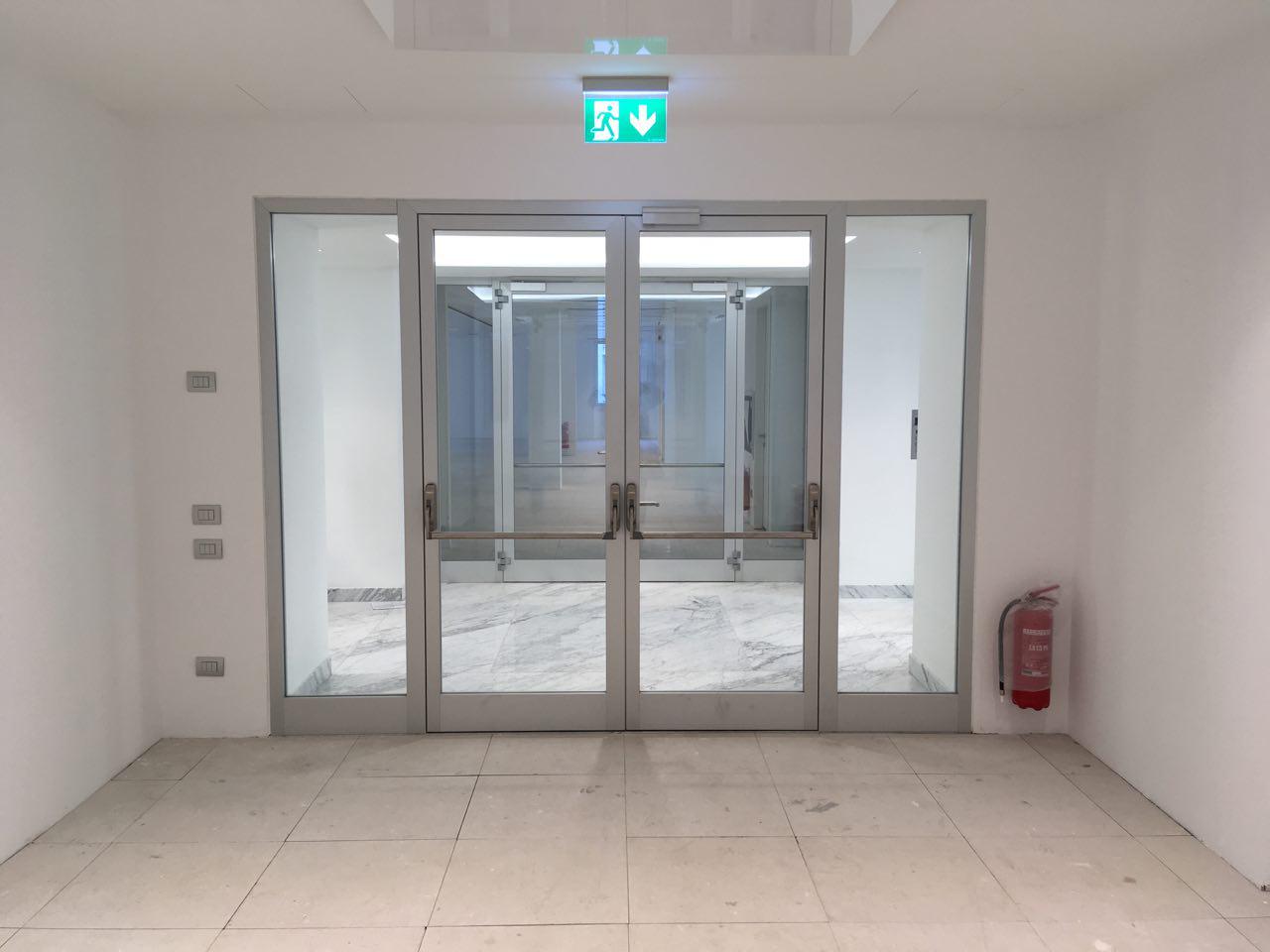

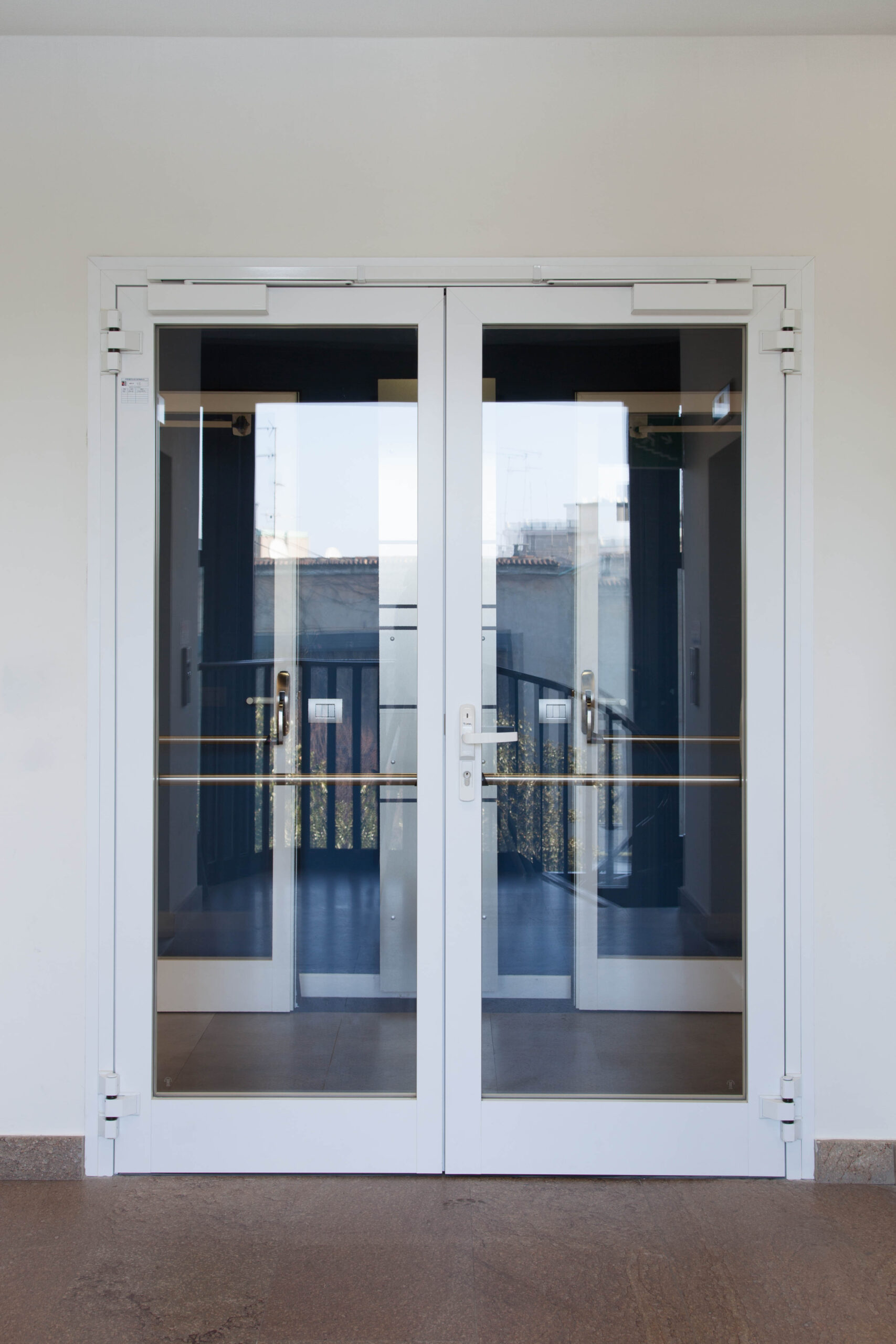

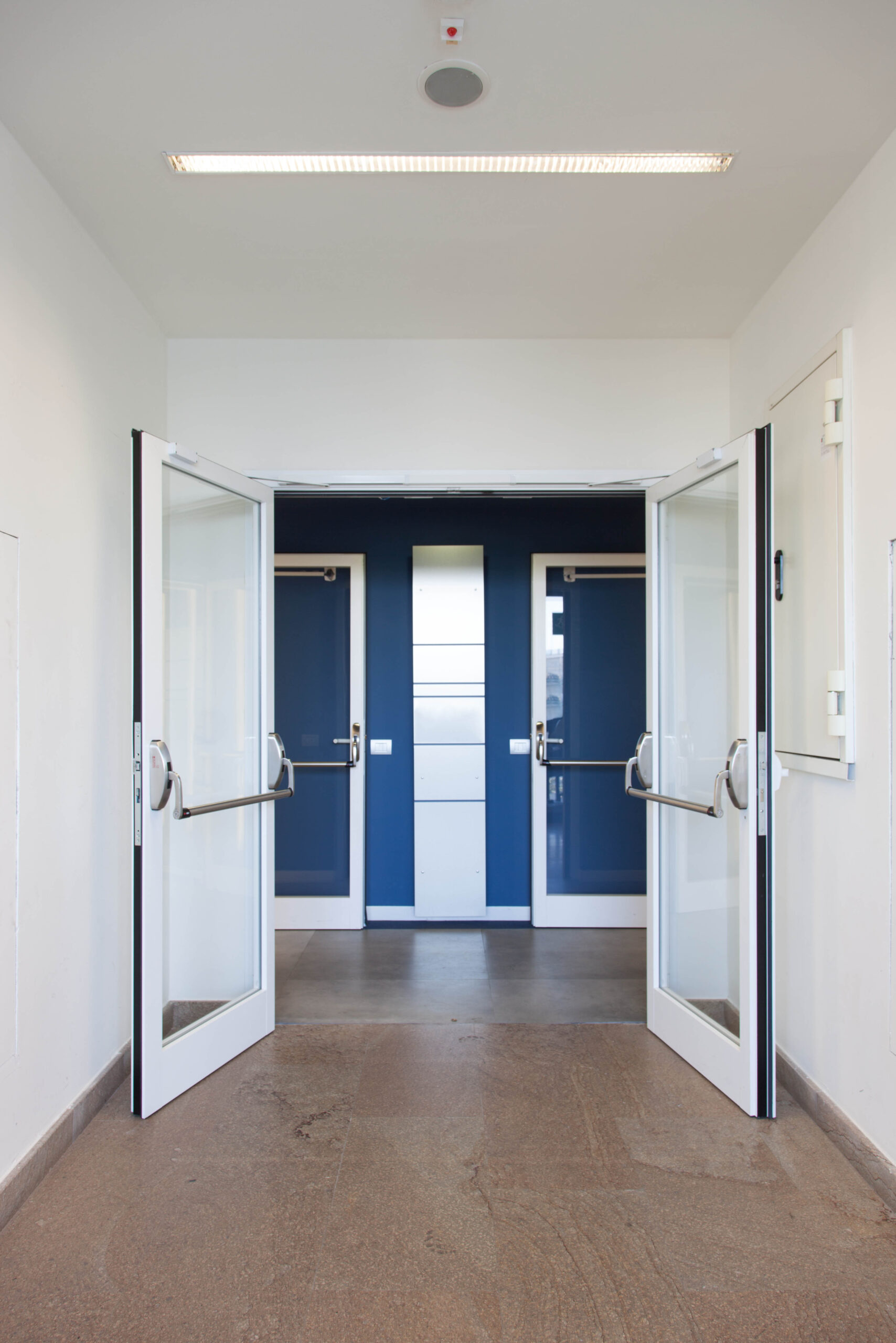

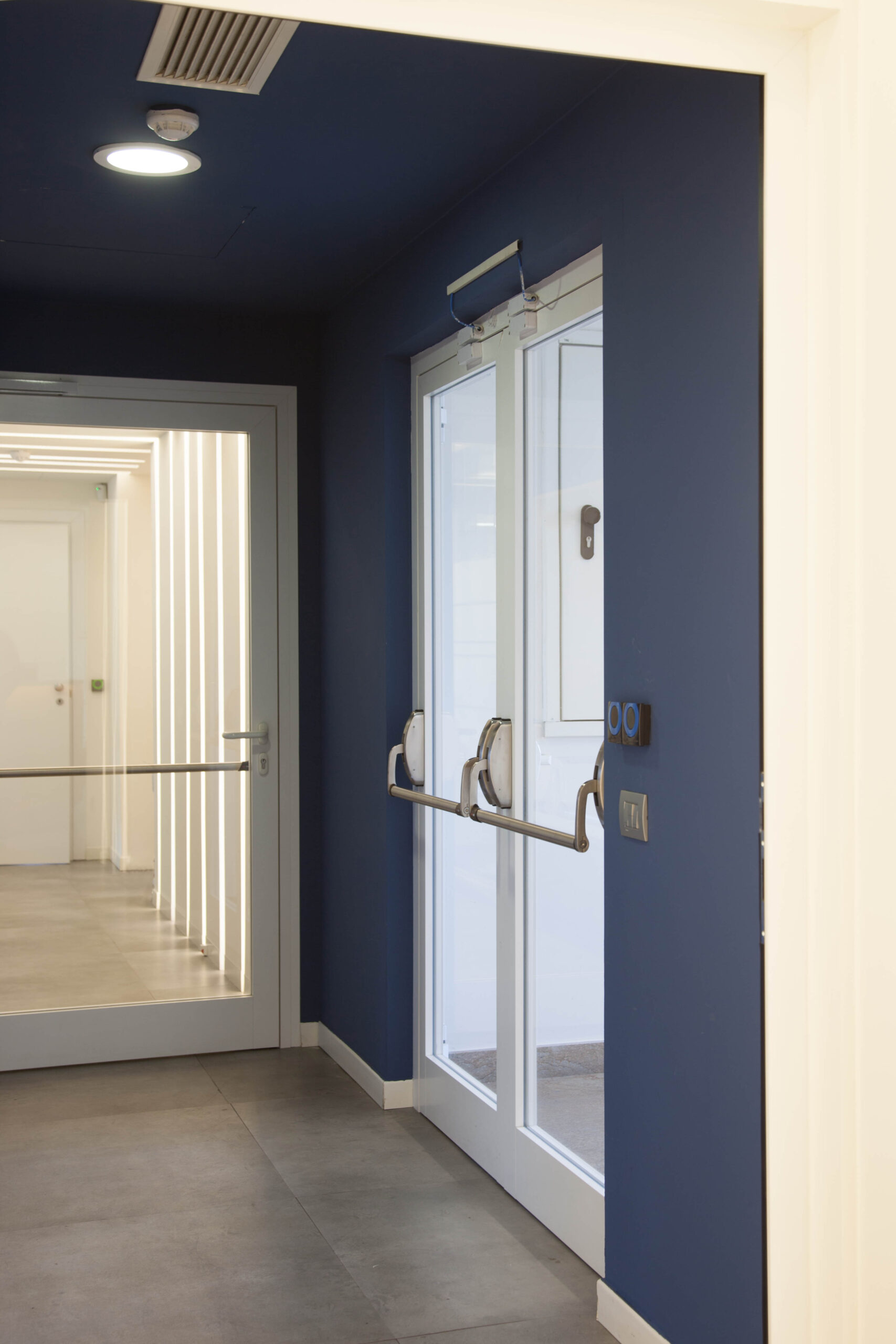

BS VXAL 2B Hinged Double Glass Door
Adjustable three-wing steel hinges screwed to the frame, with thrust bearings, stainless steel pins.
The main door has a fire-resistant lock with nickel-plated through cylinder and pair of heat-resistant stainless-steel handles for fire doors, complete with roses and escutcheons.
The secondary door has a counter lock with a self-locking flush bolt device during closing and a lever for opening.
Overhead door closer with compass arm on each door.
Central locking selector.
Series BS VFAL EI 30 CE - EI 60 CE - EI 90 CE - EI 120 CE
Glass Fireproof Doors and Windows EI 30 – EI 60 – EI 90 – EI 120
IN ACCORDANCE WITH THE EN 13501-2 – EN 14351-1: 2016+A2: 2016 REGULATIONS.
- Window frame constructed with load-bearing frame and mobile doors made of extruded aluminium alloy with double insulation on both sides, created using asbestos-free cement-based silicate sheets.
- The glass stop is the snap-lock type on both sides.
- A double gasket in extruded polymer is provided, combined with a double thermo-expanding gasket.
The total thickness of the window frame is 73 mm.
- Transparent fire-resistant glass for internal use in class REI 60 consisting of multiple sheets with fireproof material sandwiched between them, total thickness 25 mm.
- Adjustable hinges in black steel, equipped with thrust bearings.
- CE standard fire-resistant lock with Yale cylinder.
Black nylon fire-resistant safety handle.
- Self-closing bolt on secondary door and CE-standard closing regulator only in the case of double-leaf glass door.
- Surface finished in RAL 7035 light grey paint.
- Installation by means of bolts on masonry or alternatively with screws on a galvanized steel subframe.
BS VFAL 1B Hinged Single Glass Door
Adjustable hinges in black steel, equipped with thrust bearings.
Fire-resistant lock with nickel-plated through cylinder and pair of heat-resistant handles for fire doors in black nylon, complete with roses and escutcheons.
Overhead door closer with slide arm.
BS VFAL 2B Hinged Double Glass Door
Adjustable hinges in black steel, equipped with thrust bearings.
The main door has a fire-resistant lock with nickel-plated through cylinder and pair of heat-resistant handles for fire doors in black nylon, complete with roses and escutcheons.
The secondary door has a counter lock with a self-locking flush bolt device during closing and a lever for opening.
Overhead door closer with slide arm on each door.
Central locking selector.
Serie BSRVF FE EI 60 – EI 120
Lorem ipsum
Serramento Vetrato in acciaio Fisso BSRVF FE EI 60 – EI 120
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Vestibulum at lacus sem. Quisque blandit, erat sit amet varius sodales, neque purus laoreet metus, vitae pretium leo nibh in arcu. Vestibulum ante ipsum primis in faucibus orci luctus et ultrices posuere cubilia curae; Sed efficitur libero at eros varius tincidunt.
Serramento Vetrato in acciaio Fisso BSRVF FE EI 60 CE – EI 120 CE
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Vestibulum at lacus sem. Quisque blandit, erat sit amet varius sodales, neque purus laoreet metus, vitae pretium leo nibh in arcu. Vestibulum ante ipsum primis in faucibus orci luctus et ultrices posuere cubilia curae; Sed efficitur libero at eros varius tincidunt.
Series BS EI 60 – EI 120 CE in aluminium
Aluminium Fixed Glass Door
Certified in accordance with the UNI EN 1364-1:2002 standard
- Window frame constructed with a 1.5 mm-thick tubular steel frame, cold profiled, internally insulated with asbestos-free silicate-based cement matrix sheets, with containment seats for the double cold smoke and thermo-expanding seals.
Cladding with extruded aluminium alloy profiles.
The total thickness of the window is 70 mm.
- PYROSTOP fireproof glass consisting of float sheets with fireproof material sandwiched between them, total thickness 21-23 mm. Laminated glass becomes opaque when exposed to sunlight or temperatures above 45°C.
- Surface finish by means of painting or anodizing: Available colours RAL1013-3000-5010-6005-7016-7035-8017-9006-9010
Standard anodizing Silver OX – Black OX.
Aluminium Fixed Glass Door
Certified in accordance with the UNI EN 1364-1:2002 standard
- Window frame constructed with a load-bearing frame in 3 mm-thick tubular galvanized steel, protected on two sides by silicate-based cement matrix sheets mechanically affixed to the structure.
Cladding with extruded aluminium alloy profiles.
The total thickness of the window is 95 mm.
- PYROSTOP fireproof glass consisting of float sheets with fireproof material sandwiched between them, total thickness 21-23 mm. Laminated glass becomes opaque when exposed to sunlight or temperatures above 45°C.
- Surface finish by means of painting or anodizing: Available colours RAL1013-3000-5010-6005-7016-7035-8017-9006-9010
Standard anodizing Silver OX – Black OX.

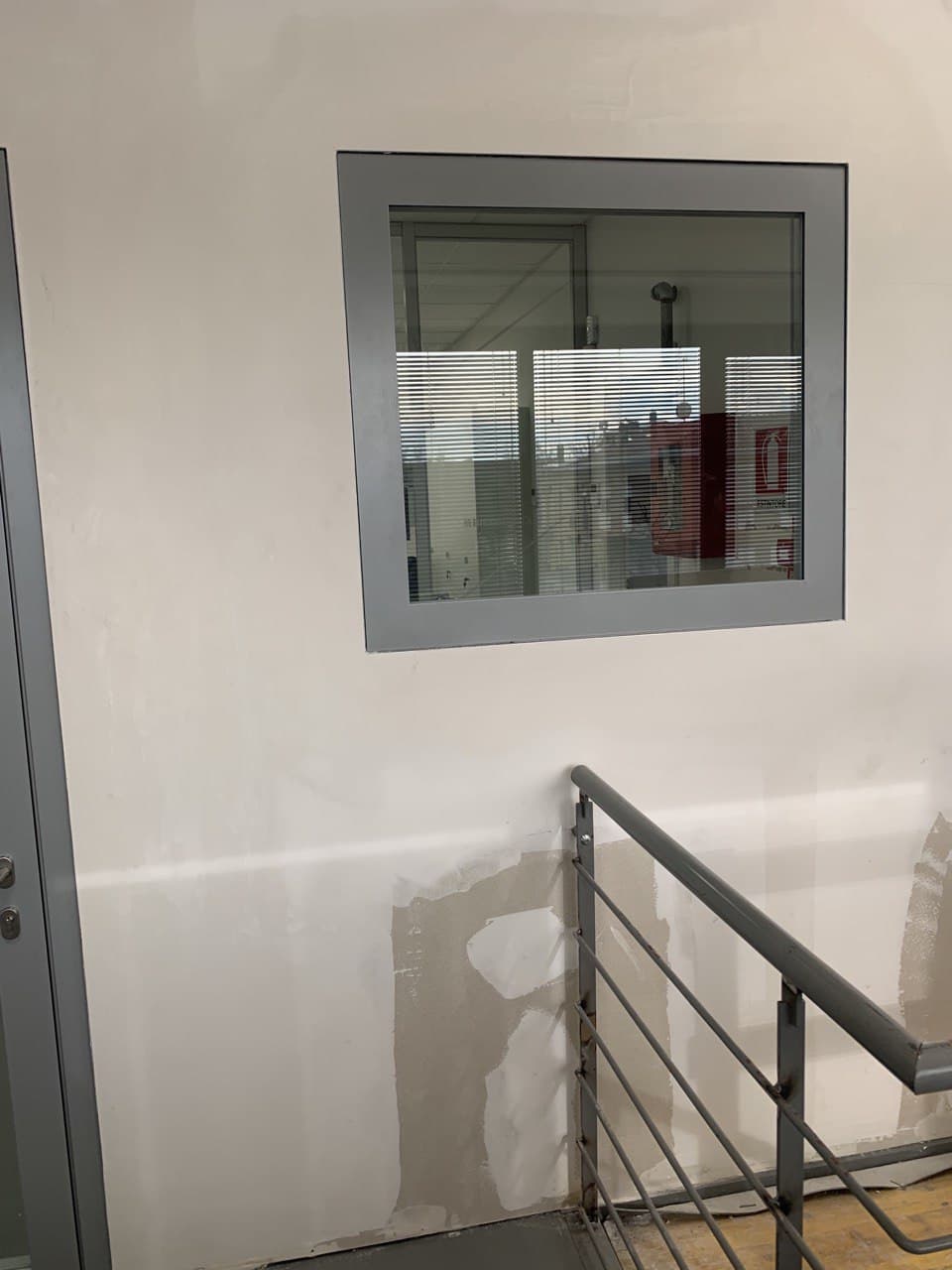

EI 30 - EI 60 Fixed Glass Door
A fixed fire-rated glazed solution designed to provide fire compartmentation while maintaining visual continuity between spaces. Ideal for projects where safety, natural light and architectural integration need to coexist in a balanced way.
EI 90 - EI 120 Fixed Glass Door
A high-performance fixed fire-rated glazed frame, suitable for environments requiring an enhanced level of fire protection. A discreet technical solution designed to separate spaces while preserving transparency, visual order and safety.
