When fire safety also demands a high standard of aesthetics, Sisti Engineering’s Design Range offers fully customised fire doors, tailor-made to meet the specific requirements of each project, without compromising on regulatory compliance. Each solution is developed through direct consultation with the client and results in a product that combines certified performance with aesthetic quality.
A designer fire door: from design to installation
The Design Line fire door is not a standard product, but a bespoke solution developed following in-depth technical consultation. Sisti Engineering works closely with the client from the very outset, analysing their functional requirements, the architectural characteristics of the setting and the level of customisation required, in order to define and deliver the most suitable solution.
Aesthetic customisation does not entail any compromise or deviation in terms of safety. Every designer fire door is manufactured in full compliance with current regulations and applicable ministerial decrees, passing both the required certification tests and the rigorous internal quality and safety tests adopted by Sisti Engineering. Versions for external use are CE-marked in accordance with standard EN 16034, whilst versions for internal use comply with the Ministerial Approval scheme pursuant to the Ministerial Decree of 21 June 2004.
Another distinctive feature of these designer fire doors is the specialised hinge, developed and patented by Sisti Engineering, which also bears the CE mark.
This is a high-quality, sophisticated technical detail that guarantees precise operation, long-term durability and aesthetic harmony with the architectural design, from the frame to the door leaf and right down to the fittings.
This range is aimed at a highly specialised audience: architects and interior designers working on high-end residential projects, hospitality venues, corporate headquarters, hospitals and environments where aesthetics are just as essential a requirement as safety. A range designed for those who consider the seamless integration of certified performance and aesthetic quality to be indispensable, without compromise.
Series BS 99 REI 120 1B.2B - Soundproof
Internal pedestrian fire door – Class REI 120
Approved in accordance with Ministerial Decree of 21 June 2004
- Frame with a high moment of inertia cross-section, made from 2.5 mm thick shaped steel section, with a seat for EPDM gaskets to seal against cold smoke and a heat-expanding gasket for sealing at high temperatures. The frame is in turn shaped to ensure coplanarity with the door leaf on the hinge side.
- Door leaf made from 1.5 mm thick galvanised steel sheet, box-sectioned and press-bent around the perimeter to form a particularly sturdy and elegant rebate.
Internal insulation consisting of multiple high-density layers bonded directly to the steel sheets to achieve high flexural and torsional rigidity.
Total door thickness: 65 mm.

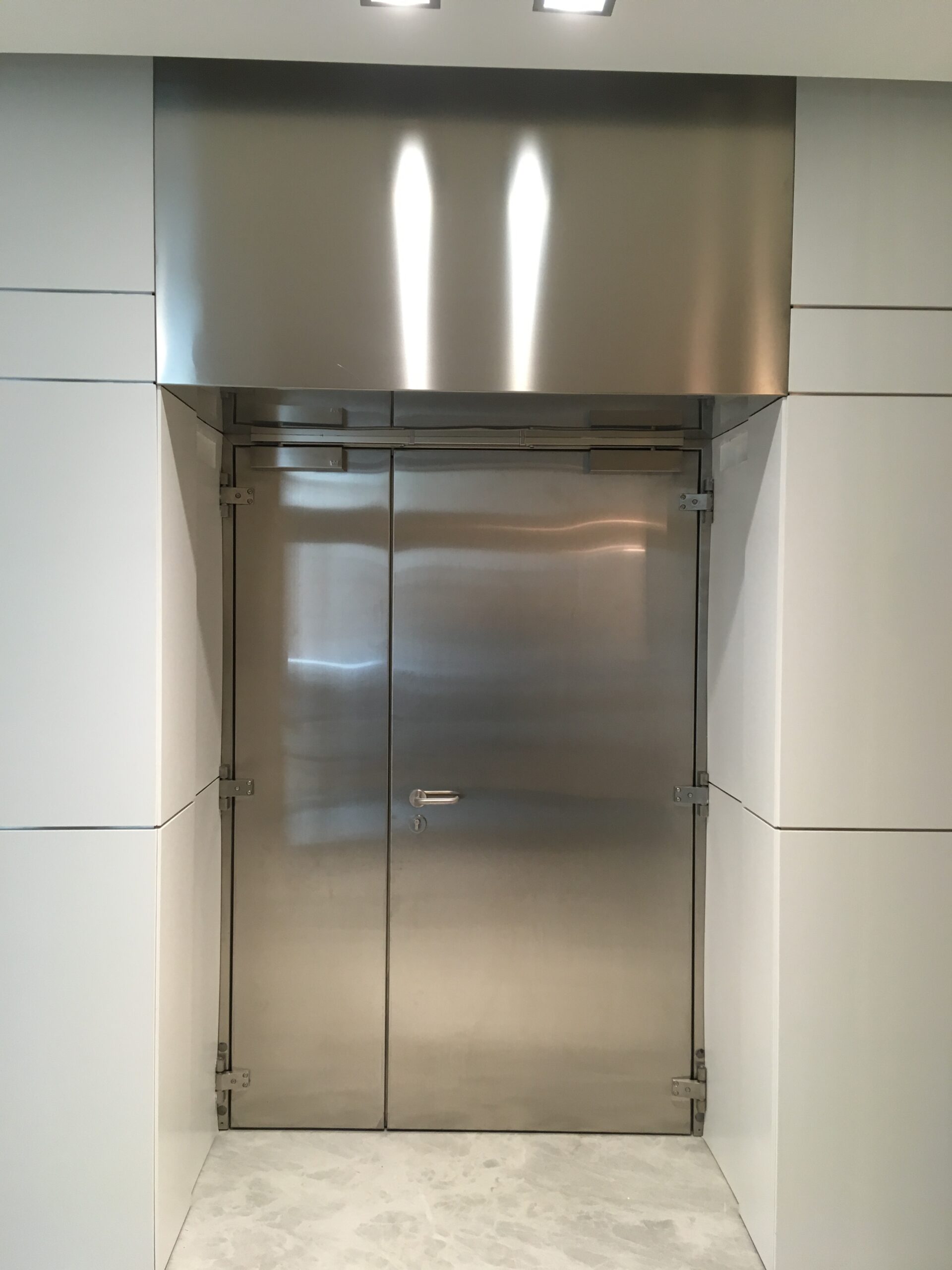

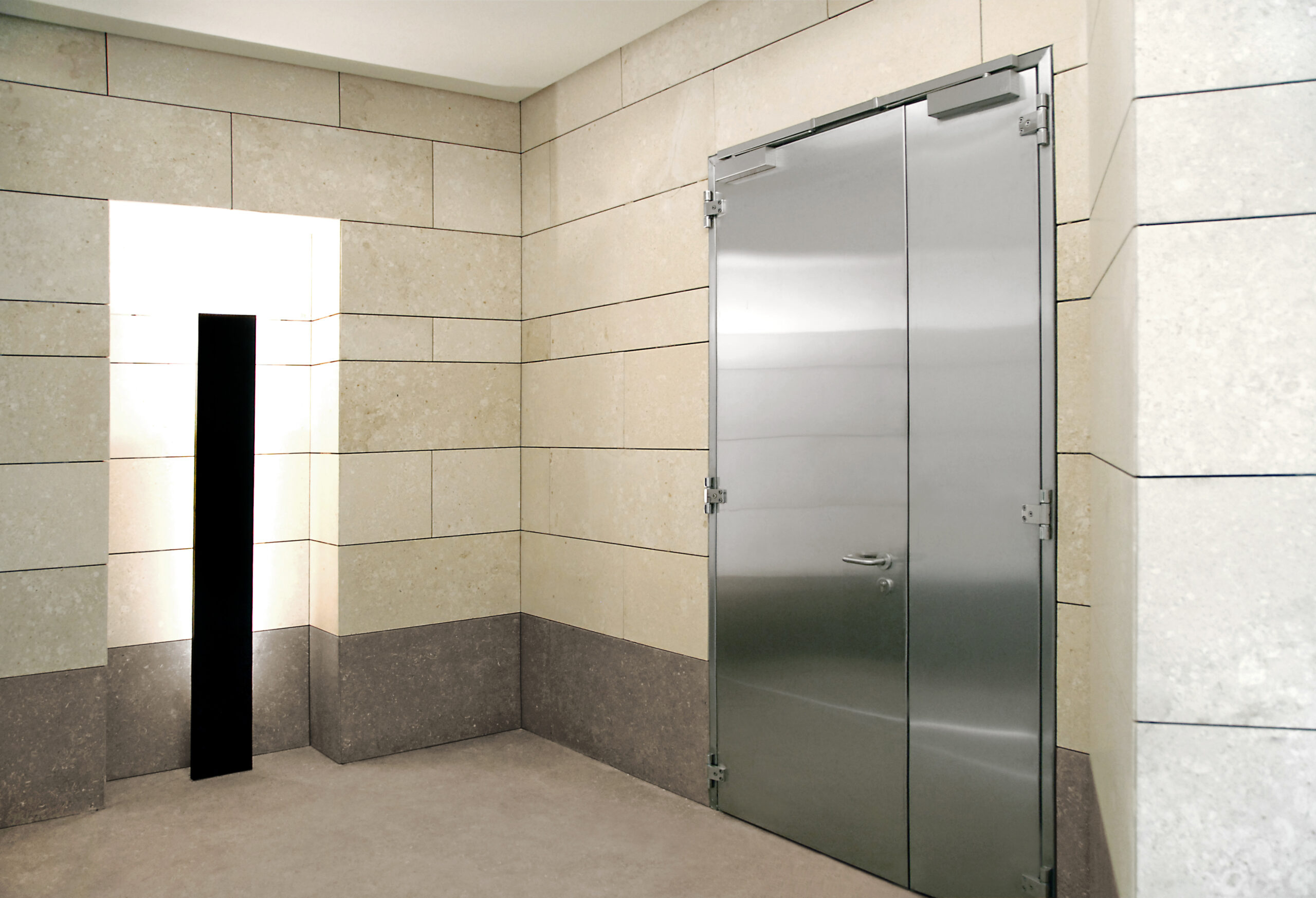

ALSO AVAILABLE IN A STAINLESS STEEL VERSION

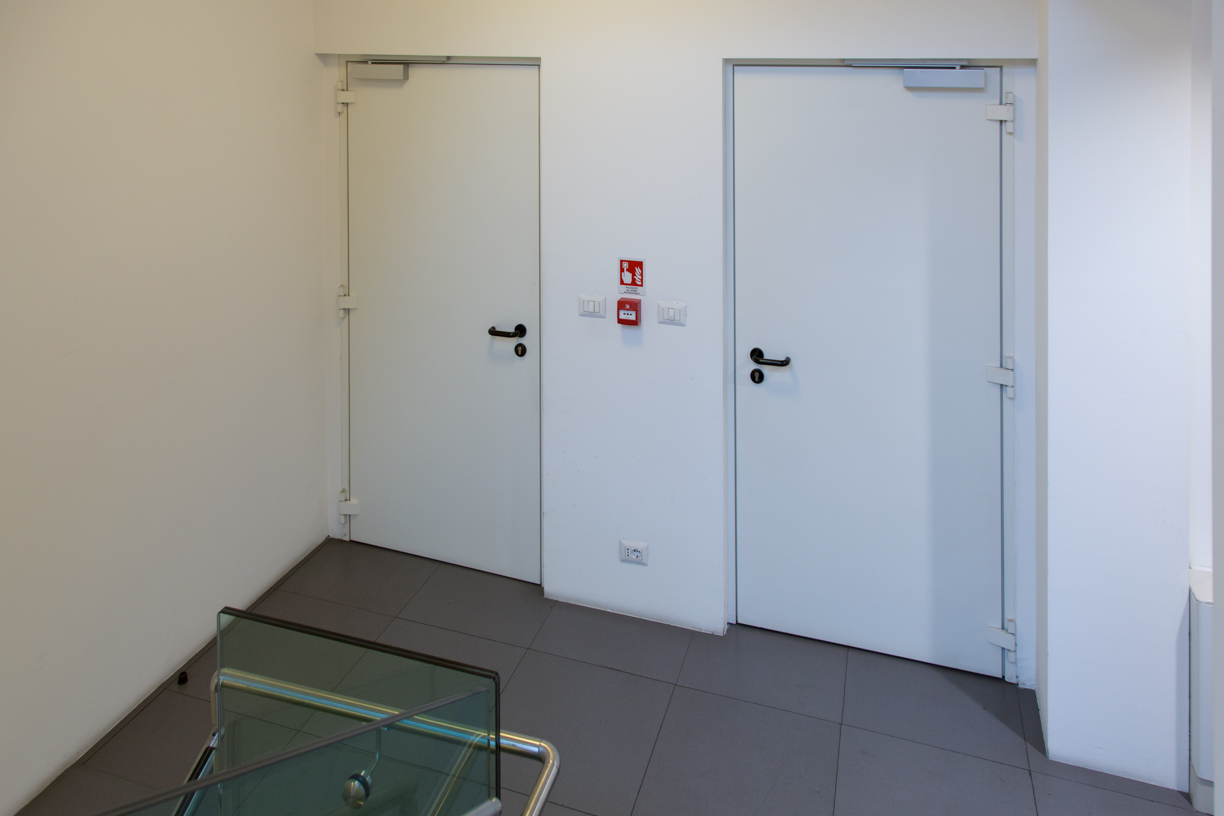

BS 99 1B Hinged Single Door
Two sealing strips fitted to the side of the door leaf.
Three CE-marked hinges rated Grade 14 in accordance with standard EN 1935: 200,000 cycles with a load of 160 kg per hinge, made from solid-machined three-wing steel and fitted with thrust bearings, designed for a virtually unlimited service life even under the most demanding conditions of use.
CE-marked two-way side-mounted fire door lock, with a nickel-plated through-cylinder and a pair of heat-resistant handles specifically designed for fire doors, complete with escutcheons and round keyholes.
CE-marked overhead door closer with a compass arm.
Surface treatment with RAL 7035 coloured primer

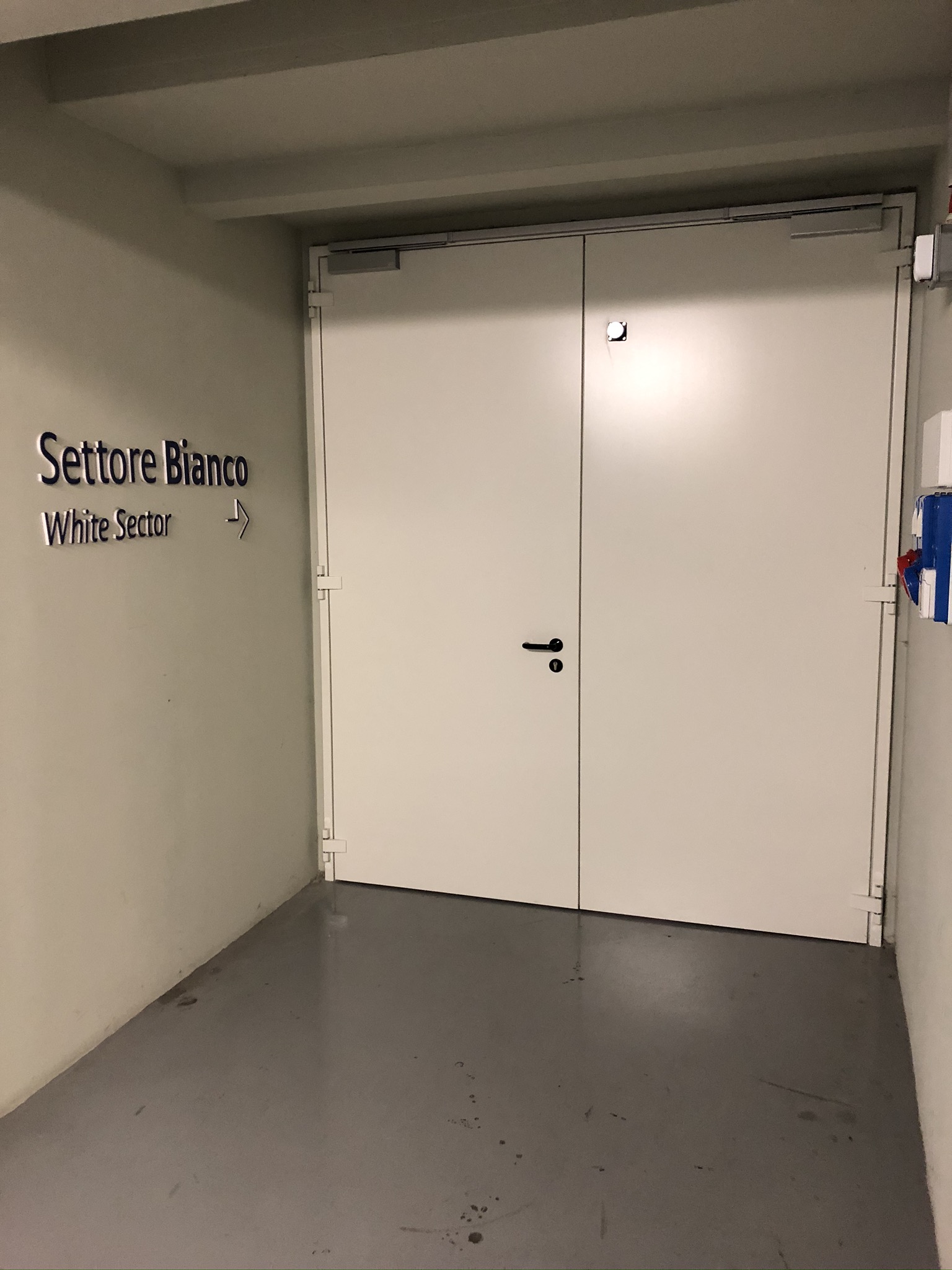

BS 99 2B Hinged Double Door
Two sealing strips fitted to the sides of each door leaf.
Three CE-marked hinges on each leaf, rated Grade 14 in accordance with standard EN 1935: 200,000 cycles with a load of 160 kg per hinge, made from solid-machined three-wing steel and fitted with thrust bearings, designed for a virtually unlimited service life even under the most demanding conditions of use.
The main leaf is fitted with a CE-marked three-way side-mounted fire-rated lock, with a nickel-plated through-cylinder and a pair of heat-resistant handles.
The secondary leaf is fitted with a CE-marked deadbolt lock featuring a self-locking ‘flash bolt’ mechanism during closing and a lever for opening.
CE-marked overhead door closer with compass arm fitted to each leaf.
CE-marked central locking selector.
Surface treatment with RAL 7035 coloured primer.
BS 99 1B A40 Hinged Single Door soundproof
Additional special neoprene seal fitted to three sides of the frame
BS 99 2B A40 Hinged Double Door soundproof
Additional special neoprene seal fitted to three sides of the frame and the central rebate.
Sound attenuation value verified on site, with instrumental tests carried out by a qualified technician on one of our double-leaf fire doors, type BS99 2B A40, installed to compartmentalise an actual room.
The noise source consists of the engine room of a cogeneration plant
Series BS212 1B.2B

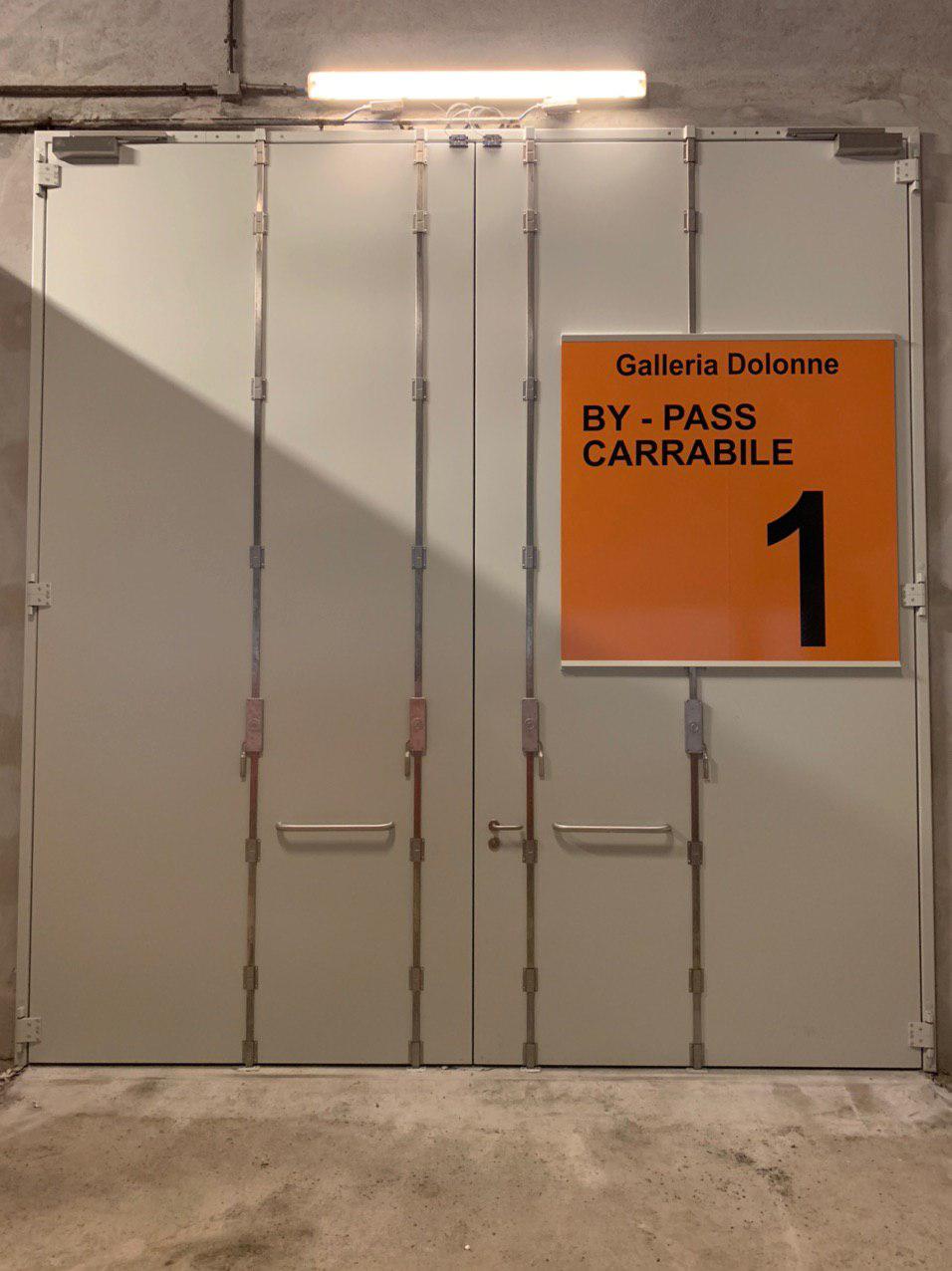

CE- marked external pedestrian or driveway fire door – Class EI2 120 – Sa
in accordance with the EN 16034:2014 – EN 14351-1:2016 + A2:2016 – EN 13241:2016 + A2:2016 standards.
- Frame with a high moment of inertia section, made of 2.5 mm-thick shaped galvanized steel profile, with seats for non-toxic thermoplastic elastomer gaskets for cold smoke sealing and thermo-expanding gasket for high temperature sealing.
The frame is shaped to lie flush with the door on the hinge side. - Door in 1.2 mm-thick galvanized steel sheet, boxed and press-folded around the perimeter in such a way as to form a stop that is solid and elegant. Internal insulation consisting of multiple high-density layers glued directly to the sheets to obtain high flexural and torsional rigidity.
A recessed automatic under-door seal is provided on the lower edge of the pull side.
The total thickness of the door is 68 mm.

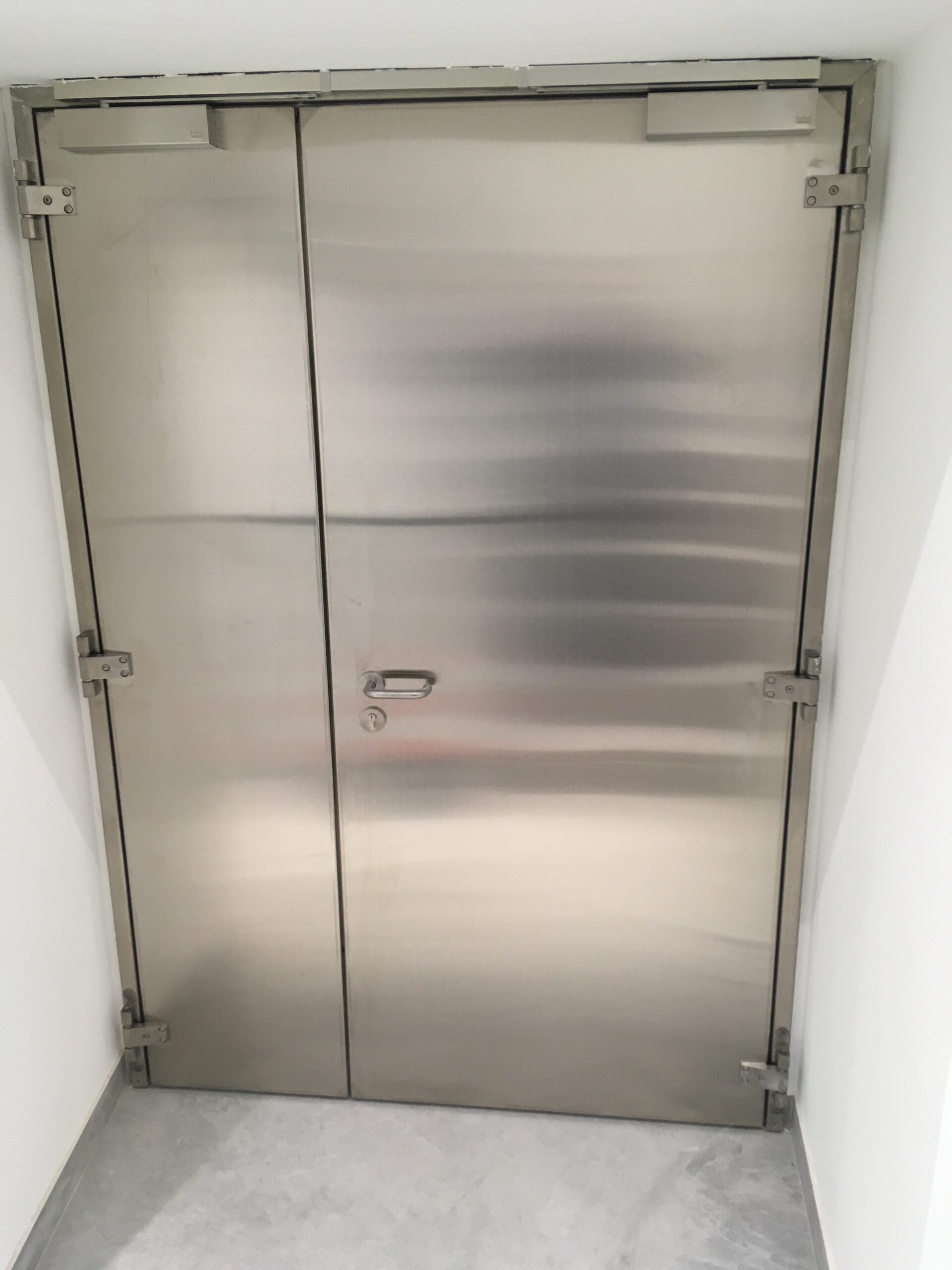

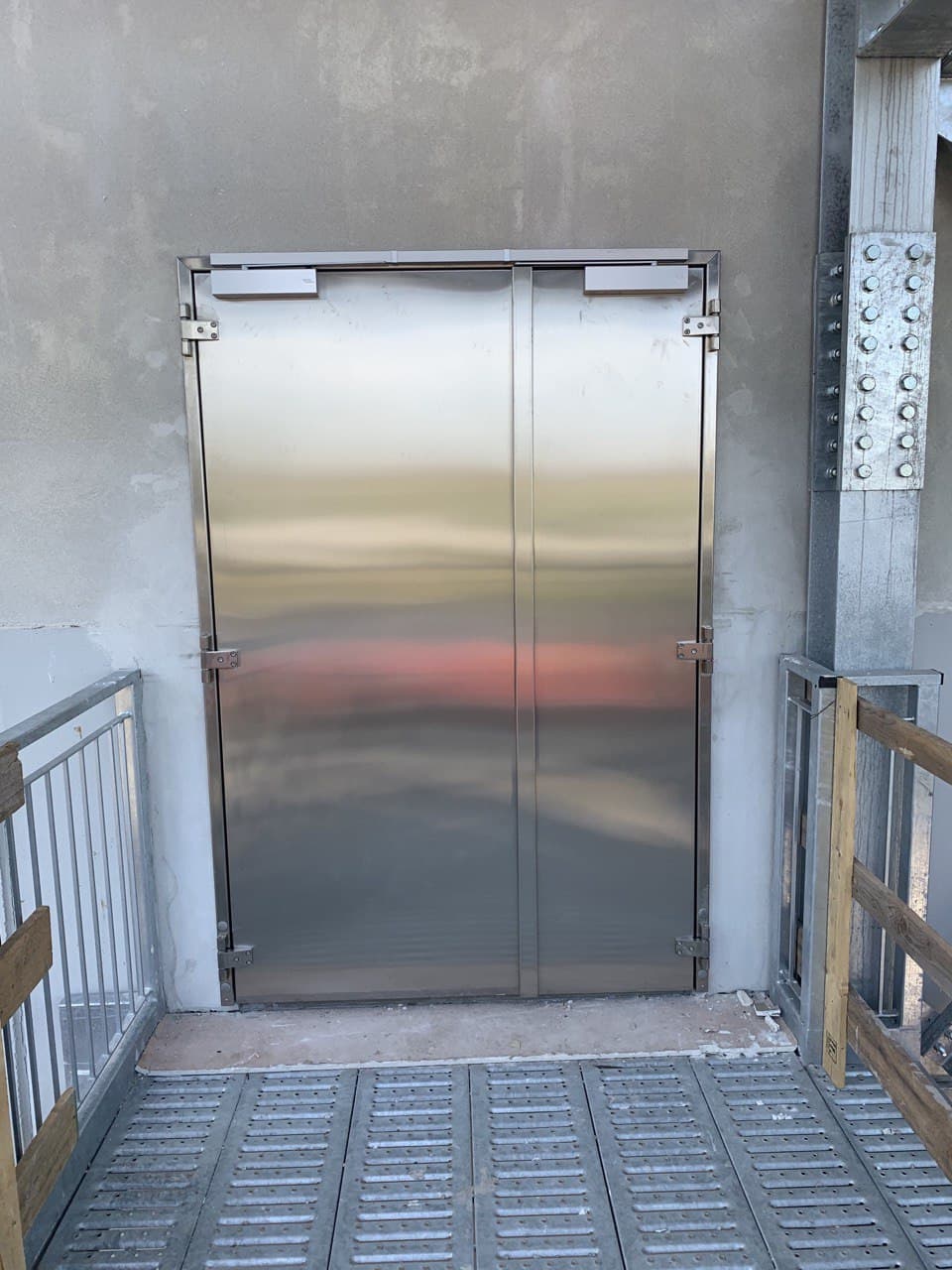

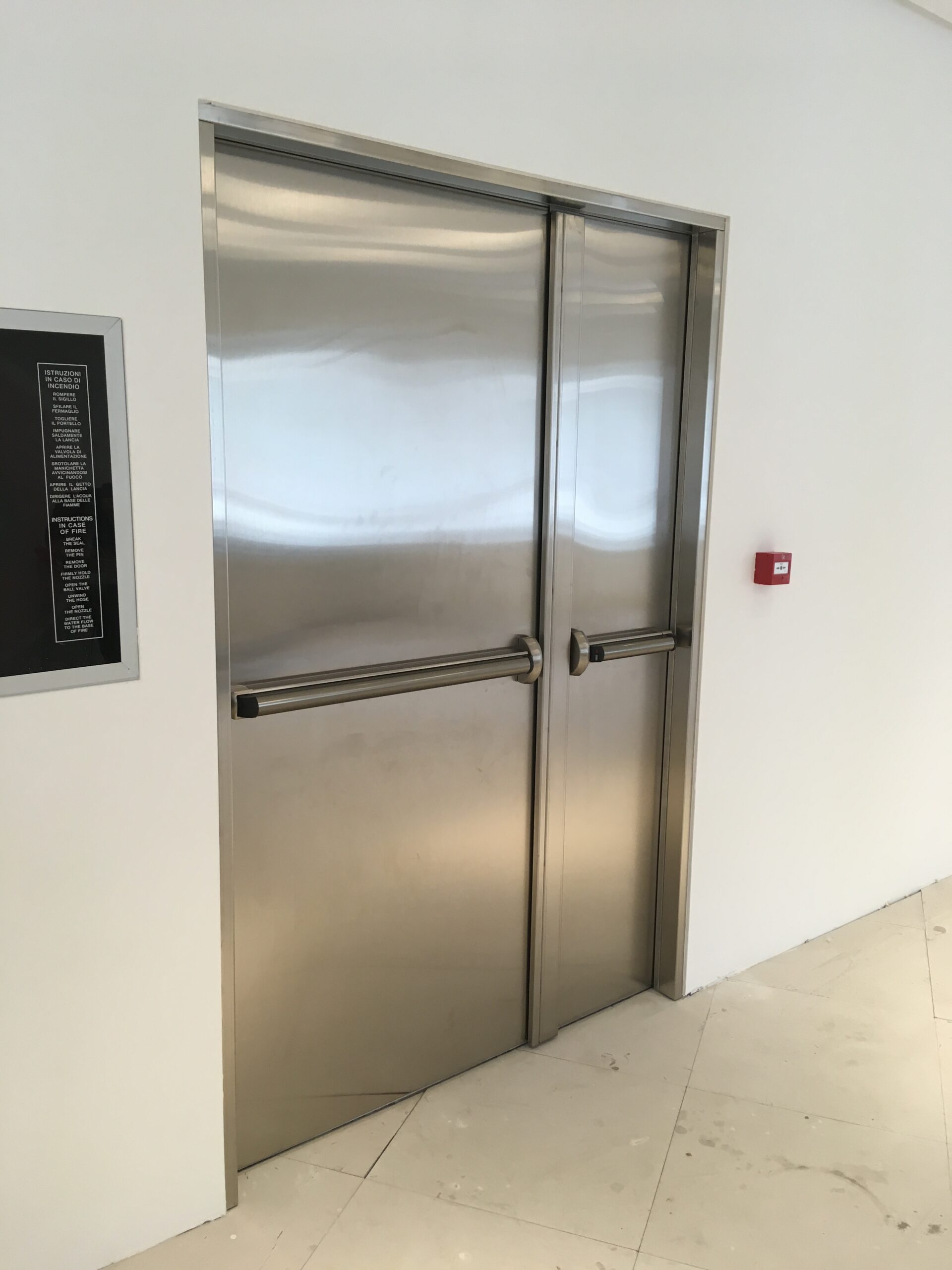

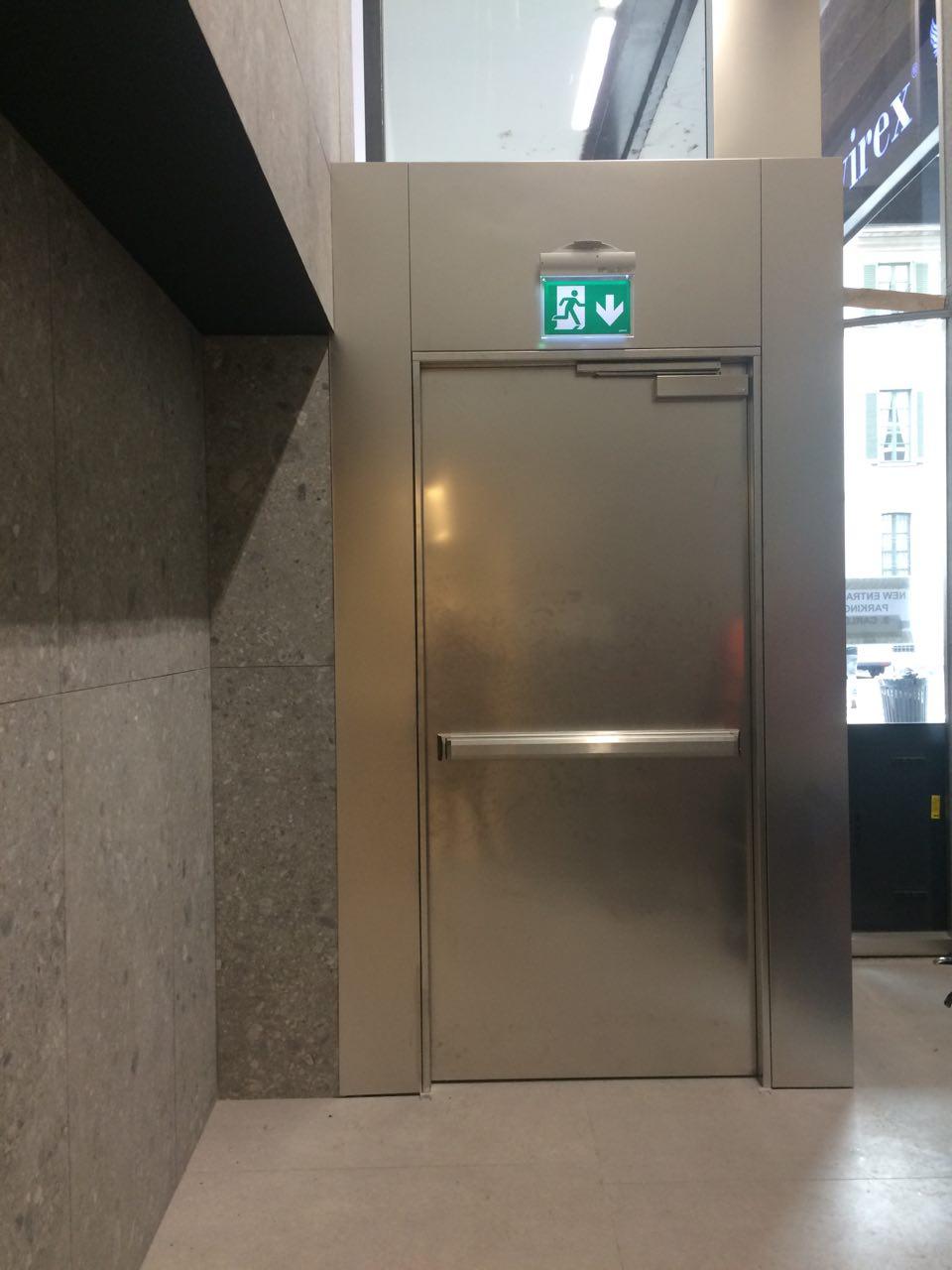

Also available in a stainless-steel version.
BS 212 1B Hinged Single Door
Two safety bolts mounted laterally on the door leaf.
Three CE-marked hinges with grade 14 in accordance with the EN 1935 standard: 200,000 cycles with a mass of 160kg on each individual hinge, made from three-winged steel machined from solid billet and equipped with a thrust bearing, sized for practically unlimited duration even under the most severe conditions of use.
CE-marked two-way lateral fire lock, with nickel-plated through cylinder and pair of heat-resistant handles specifically for fire doors, complete with roses and escutcheons
CE-marked overhead door closer with compass arm.
Surface treatment with RAL 7035-coloured primer.

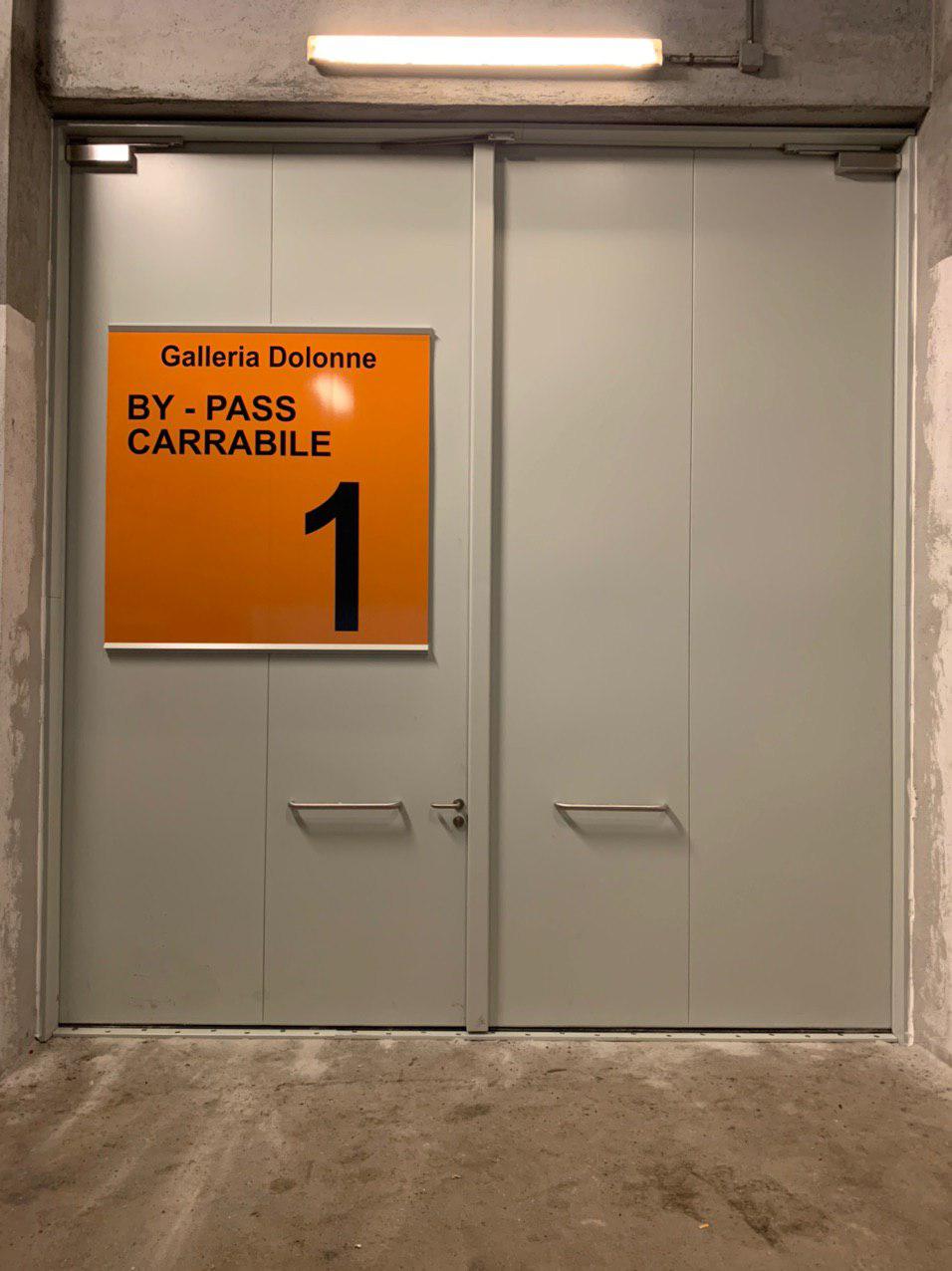

BS 212 2B Hinged Double Door
Two safety bolts mounted laterally on each door leaf.
Three CE-marked hinges on each door with grade 14 in accordance with the EN 1935 standard: 200,000 cycles with a mass of 160kg on each individual hinge, made from three-winged steel machined from solid billet and equipped with a thrust bearing, sized for practically unlimited duration even under the most severe conditions of use.
The main door has a CE-marked two-way lateral fire lock, with nickel-plated through cylinder and pair of heat-resistant handles.
The secondary door has a CE-marked counter lock with a self-locking flush bolt device during closing and a lever for opening.
CE-marked overhead door closer with compass arm on each door.
CE-marked central locking selector.
Surface treatment with RAL 7035-coloured primer.
